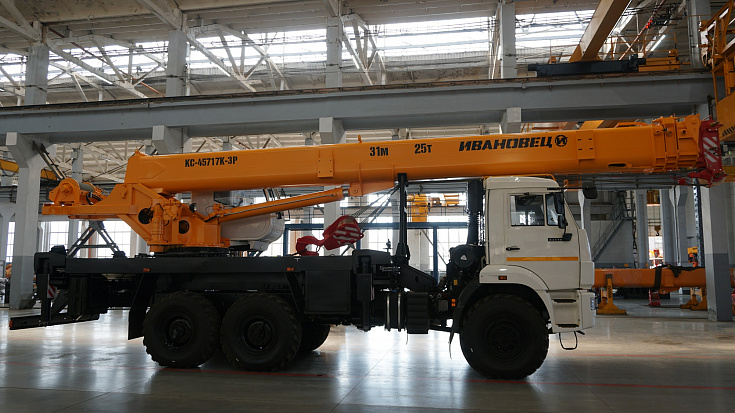

IVANOVETS КС-45717К-3Р Аir

1 / 11

2 / 11

3 / 11

4 / 11

5 / 11

6 / 11

7 / 11

8 / 11

9 / 11

10 / 11

11 / 11

Description

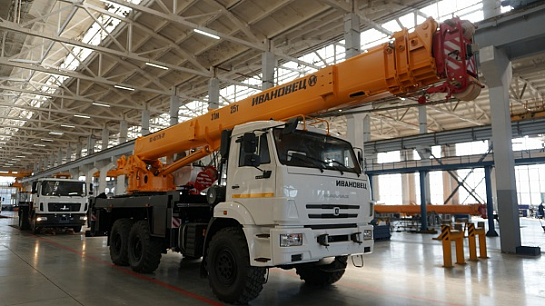

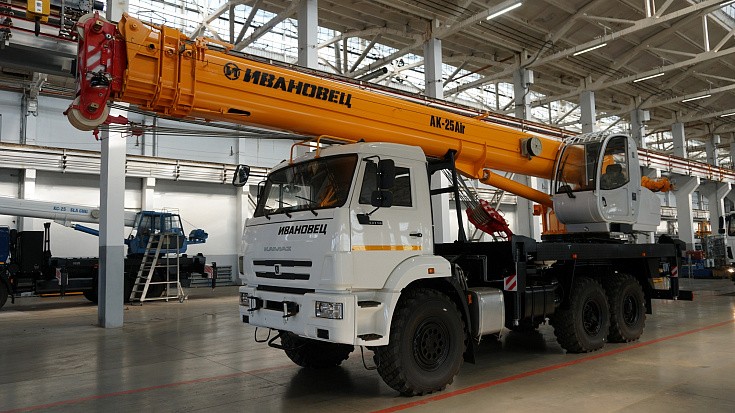

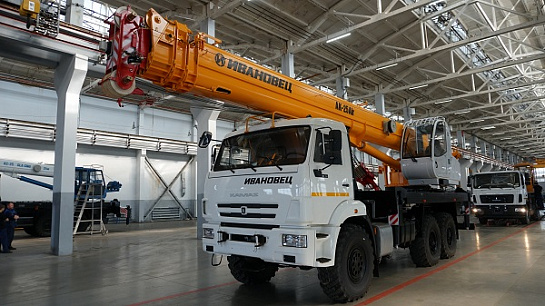

Truck-mounted crane KС-45717K-3P Air is designed for construction-assembly works and handling operations with regular loads at the distributed objects.

Chassis: KAMAZ-43118 of emission standard Euro 2 /Euro 3 / Euro 4 / Euro 5
Maximum lifting capacity: 25 tn
Crane mechanisms drive: hydraulic with the possibility of combining of work operations
Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of S700MC steel. In order to increase a length of the boom the 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

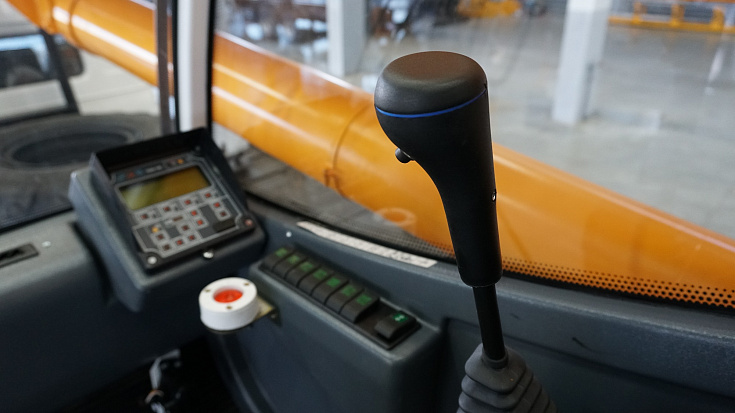

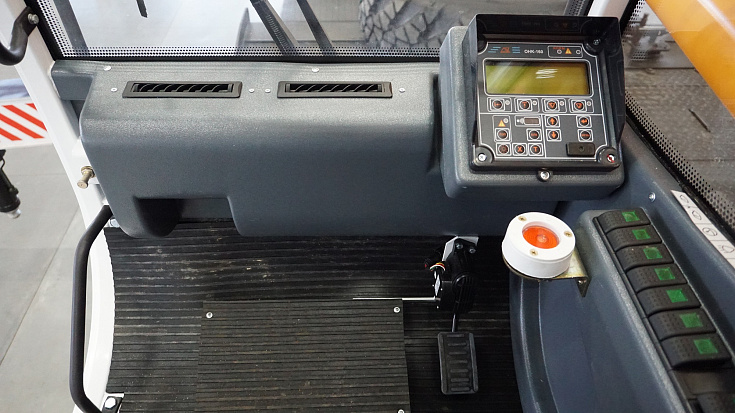

Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Technical characteristics

Chassis

Base chassis

URAL-5557
Axle configuration

6x6
Engine

YMZ-53623-10

Lifting characteristics

Max. lifting capacity, tn

25
Load moment, tm

48
Support contour, m

5,2 х 4,0
Boom length, m

8,0 - 18,0
Jib length, m

7,0

Maximum load-lifting height, m

With main boom

18,4
With jib

25,0

Working radius, m

With main boom

1,9 - 17,0
With jib

8,0 - 17,0
Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min

0,2 - 7,5
Maximum speed of lifting (lowering) the hook, m/min

35,0
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 2,4
Slewing speed, min-1

0,2

Dimensions, mm

Length, mm

10 000
Width, mm

2 500
Height, mm

3 520
Gross weight with jib, t

18,75

Axle load, t

Weight on front axle

4,70
Weight on rear axle

14,05

Load-lifting characteristics

In crane operation area 240 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.
