Description

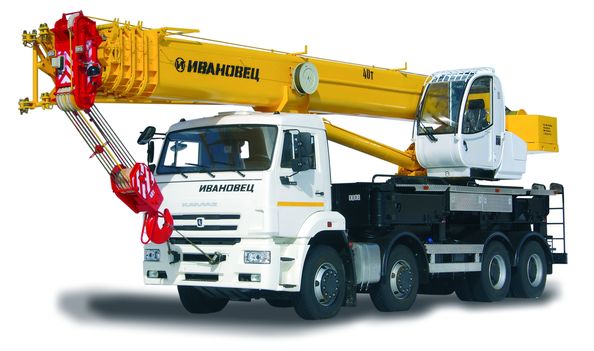

Truck-mounted crane KС-65740-8 is designed for construction-assembly works and handling operations with regular loads at the distributed objects.

Chassis: KAMAZ-65201 of emission standard Euro 4 / Euro 5
Maximum lifting capacity: 40 tn
Crane mechanisms drive: hydraulic with the possibility of combining of work operations
Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. In order to increase a length of the boom the 9.0 m jib to be equipped parallel to the boom or at an angle of 30 degrees
Outriggers controls: by remote panel

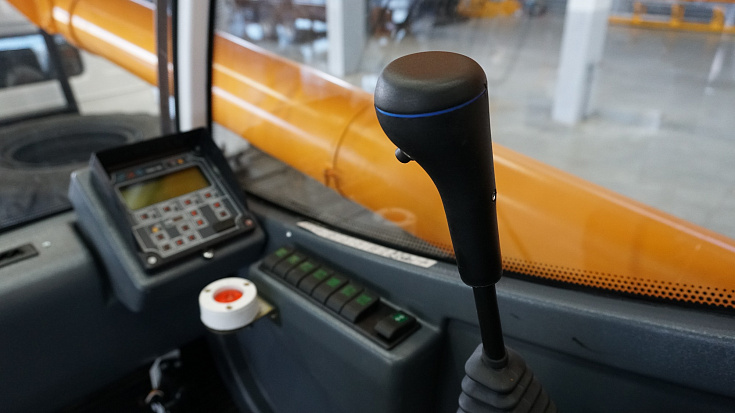

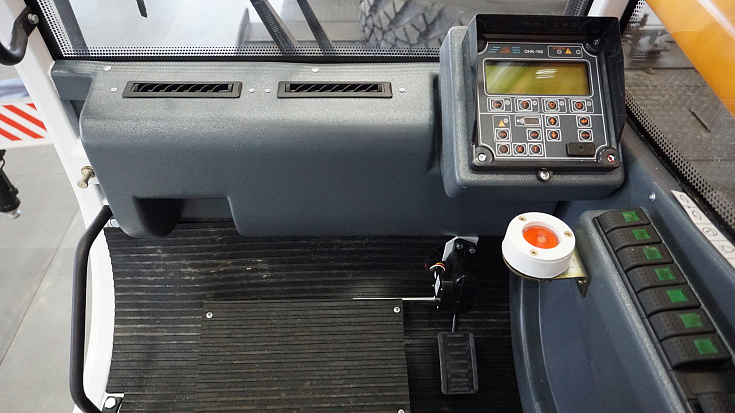

Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder. Additional counterweight on request

Chassis

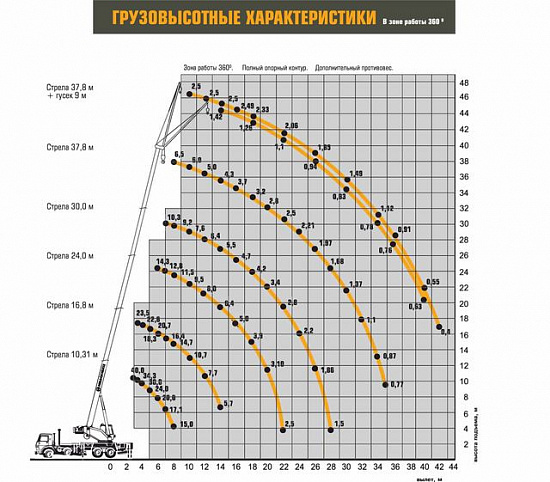

Lifting characteristics

Maximum load-lifting height, m

Working radius, m

With main boom

2,8 - 35,0
With jib

10,0 - 42,0
Speed of lifting (lowering) of the load at 10-fold stocking of the cargo rope, m / min

0,2 - 5,1
Maximum speed of lifting (lowering) the hook, m/min

38,0
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 1,0
Slewing speed, min-1

0,2

Dimensions, mm

Axle load, t

In crane operation area 360 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.
