IVANOVETS КС-65740-6

1 / 11
2 / 11
3 / 11
4 / 11
5 / 11
6 / 11
7 / 11
8 / 11
9 / 11
10 / 11
11 / 11

Description

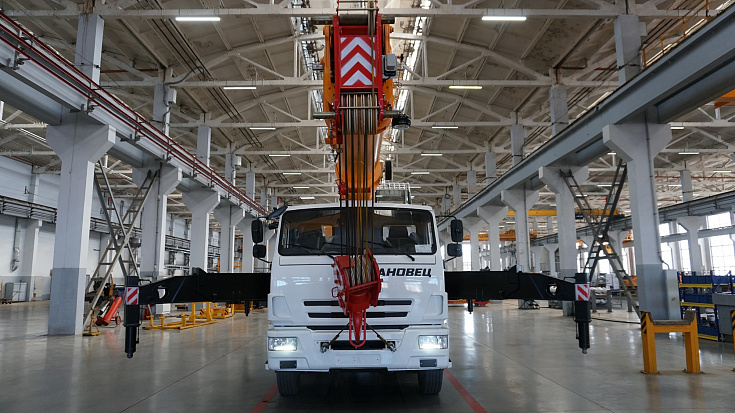

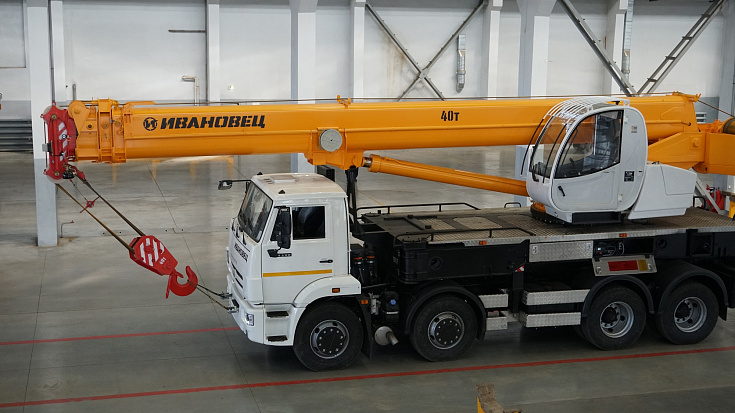

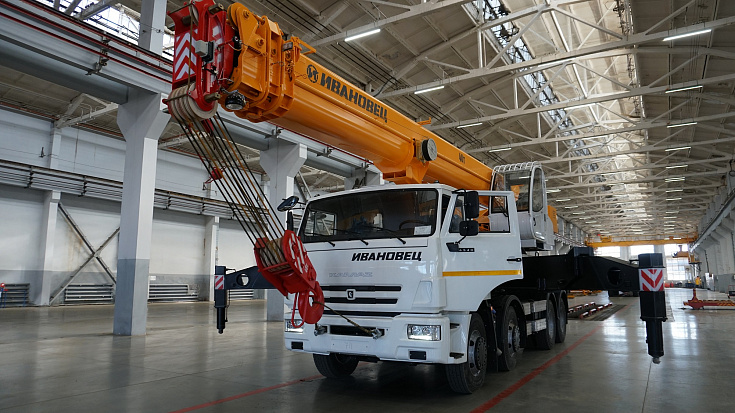

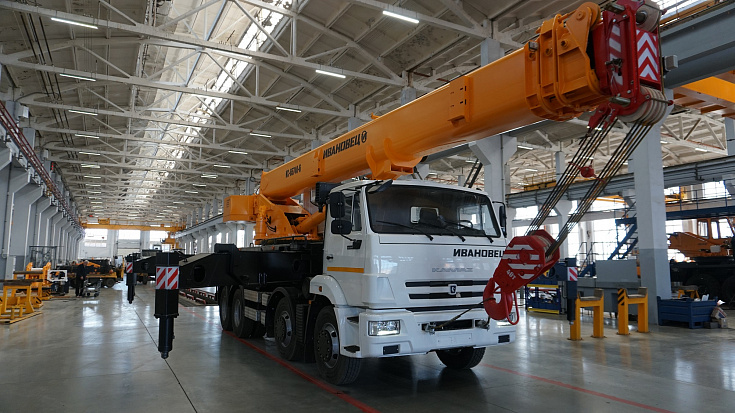

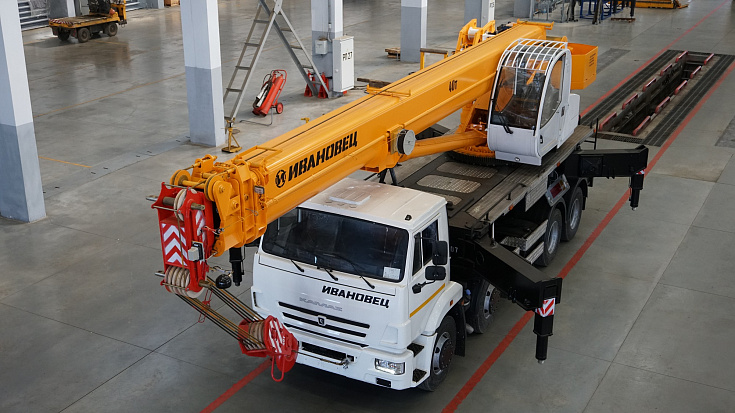

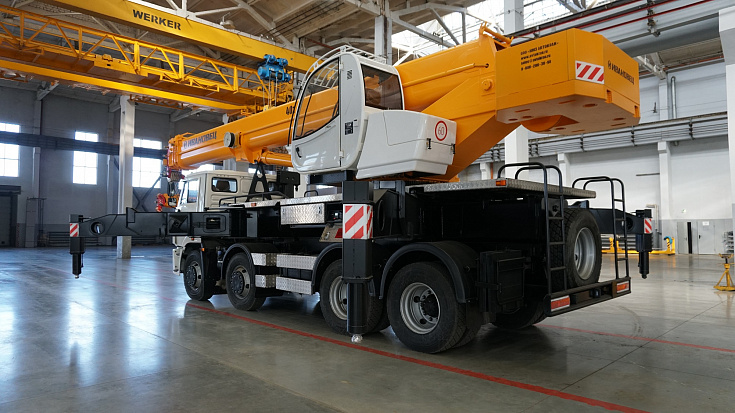

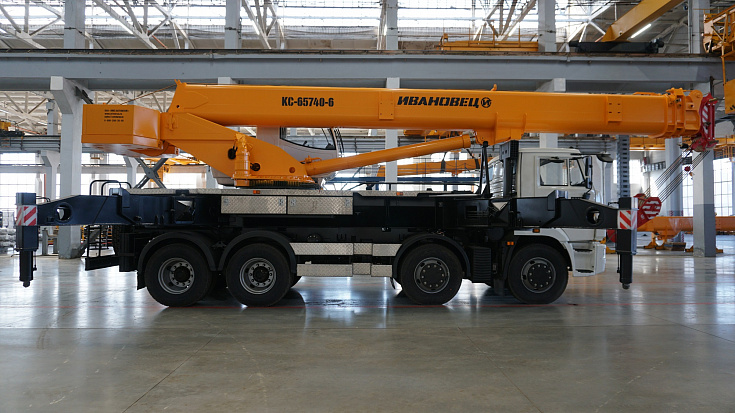

Truck-mounted crane KС-65740-6 is designed for construction-assembly works and handling operations with regular loads at the distributed objects.

  • Chassis: KAMAZ-6540 of emission standard Euro 2 /Euro 3 / Euro 4 / Euro 5
  • Maximum lifting capacity: 40 tn
  • Crane mechanisms drive: hydraulic with the possibility of combining of work operations
  • Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. In order to increase a length of the boom the 9.0 m jib to be equipped parallel to the boom or at an angle of 30 degrees

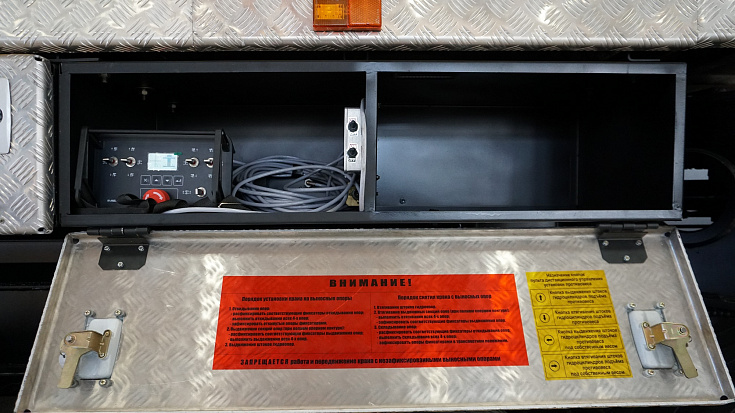

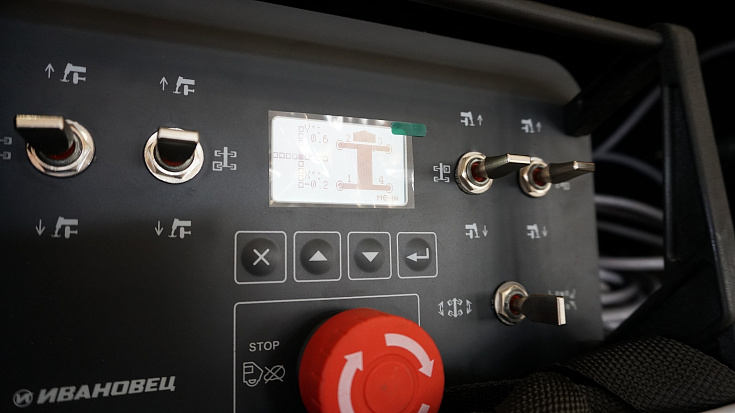

  • Outriggers controls: by remote panel

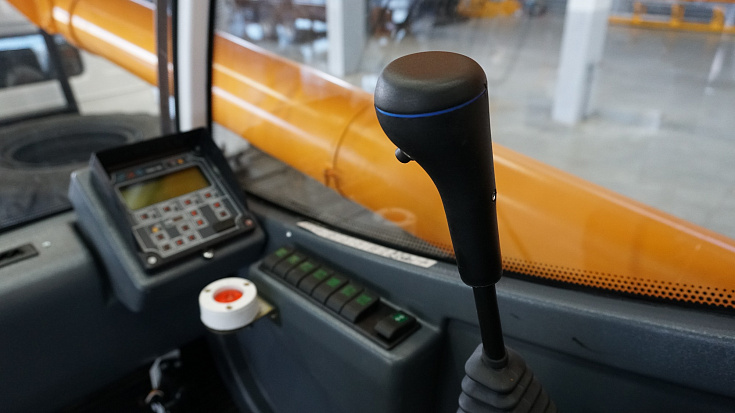

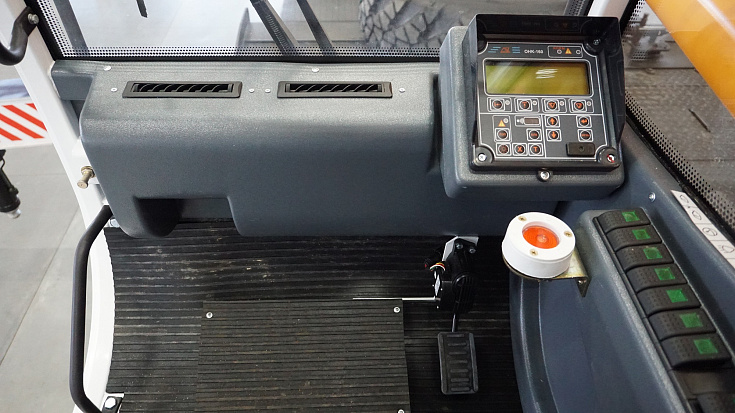

  • Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder. Additional counterweight on request

Technical characteristics

Chassis
  • Base chassis
    KAMAZ-6540
  • Axle configuration
    8x4
  • Engine
    Cummins ISB6.7E5 300
Lifting characteristics
  • Max. lifting capacity, tn
    40
  • Load moment, tm
    120
  • Support contour, m
    7,4 х 6,5
  • Boom length, m
    10,1 - 30,3
  • Jib length, m
    9,0
Maximum load-lifting height, m
  • With main boom
    30,3
  • With jib
    39,0
Working radius, m
  • With main boom
    3,0 - 28,0
  • With jib
    10,0 - 34,0
  • Speed of lifting (lowering) of the load at 10-fold stocking of the cargo rope, m / min
    0,2 - 5,1
  • Maximum speed of lifting (lowering) the hook, m/min
    38,0
  • The speed of landing, m/min
    60,0
  • Travelling speed, km/h
    0,3 - 1,0
  • Slewing speed, min-1
    0,2
Dimensions, mm
  • Length, mm
    11 800
  • Width, mm
    2 550
  • Height, mm
    4 000
  • Gross weight with jib, t
    27,13
Axle load, t
  • Weight on front axle
    12,03
  • Weight on rear axle
    15,10

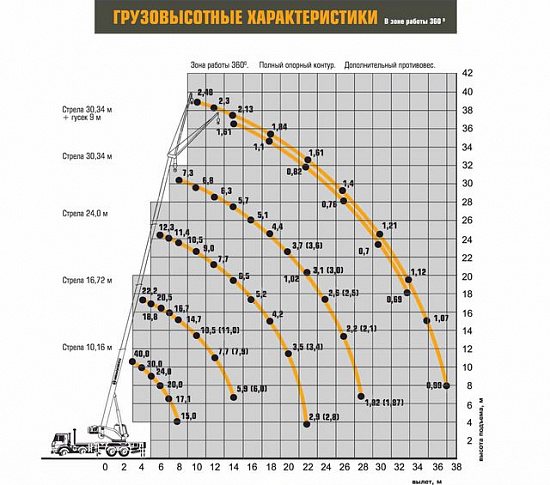

Load-lifting characteristics

В зоне работы 360*
Примечание: в скобках указана грузоподъёмностьдля работы с ядовитыми и взрывчатыми веществами, если отличается.

Options for autocranes

Название
  • -Удлинитель стрелы - "гусек" 9, 0 м
  • -Электро-пропорциональная система управления крановыми операциями
  • -Механизм наклона кабины крановщика
  • -Исключить отдельно возимый противовес для кранов "АК-40"
