IVANOVETS КС-55744

1 / 10

2 / 10

3 / 10

4 / 10

5 / 10

6 / 10

7 / 10

8 / 10

9 / 10

10 / 10

Description

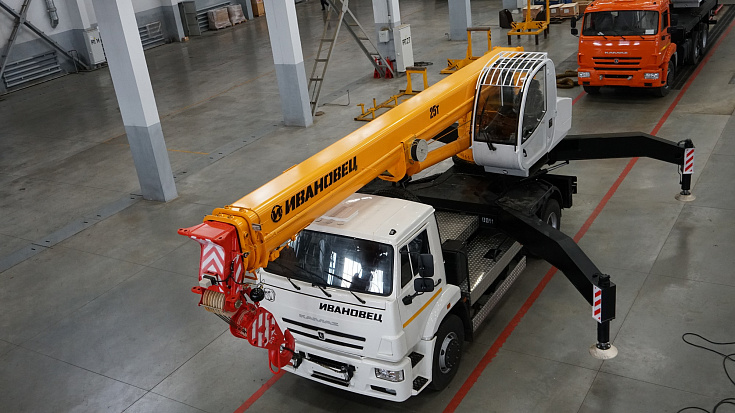

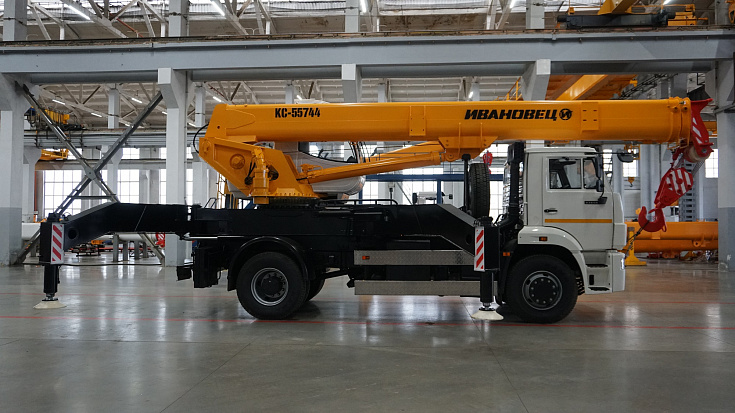

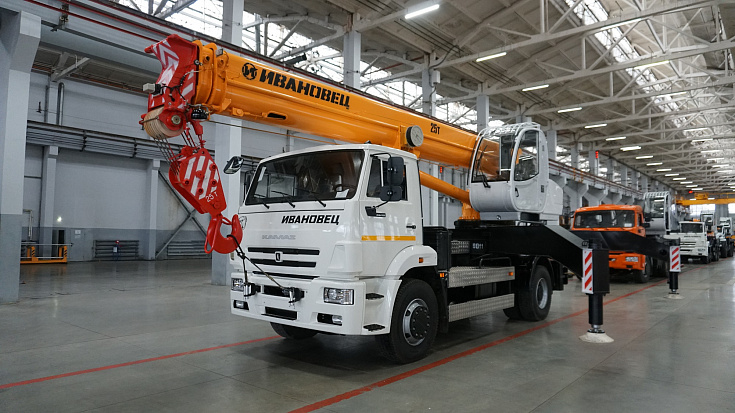

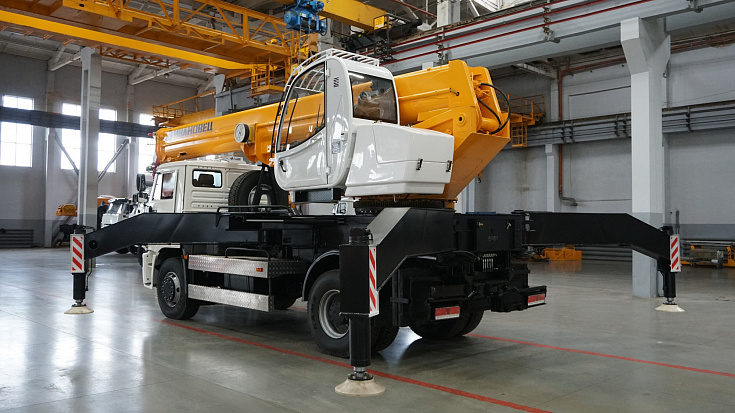

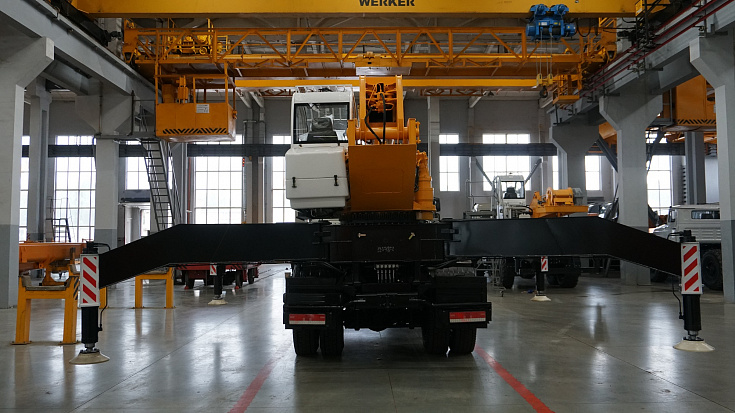

Truck-mounted crane KС-55744 is designed for construction-assembly works and handling operations with regular loads at the distributed objects

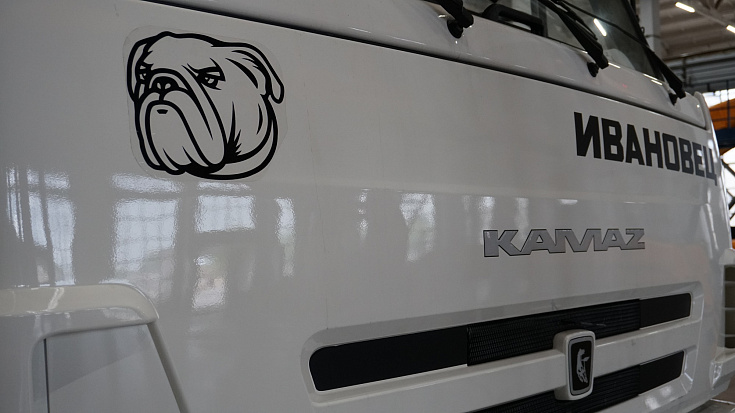

Chassis: KAMAZ-53605 of emission standard Euro 2 /Euro 3 / Euro 4 / Euro 5
Maximum lifting capacity: 25 tn
Crane mechanisms drive: hydraulic with the possibility of combining of work operations
Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. In order to increase the boom length a 7.0 m jib to be equipped

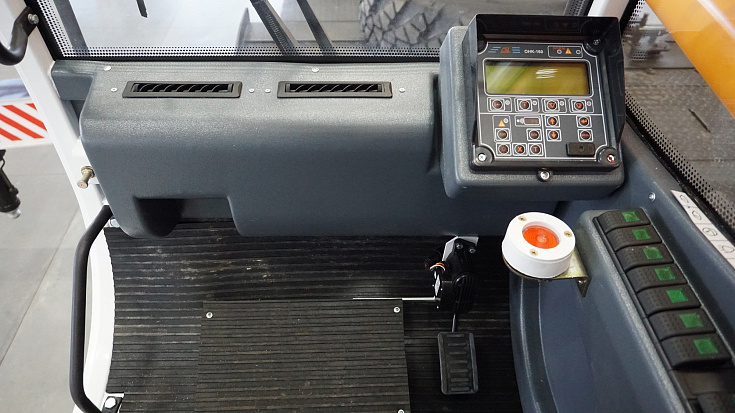

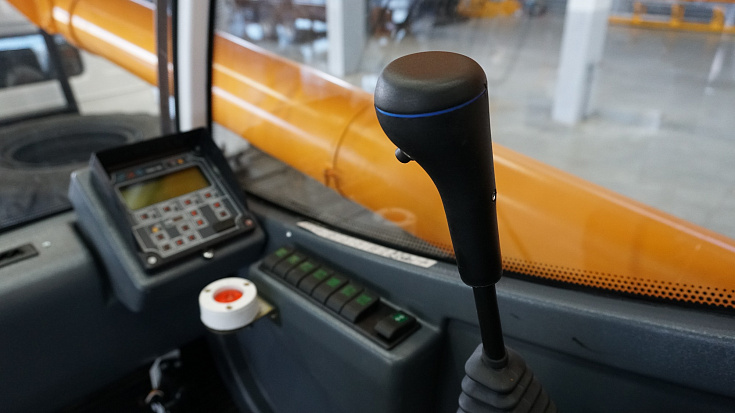

Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Chassis

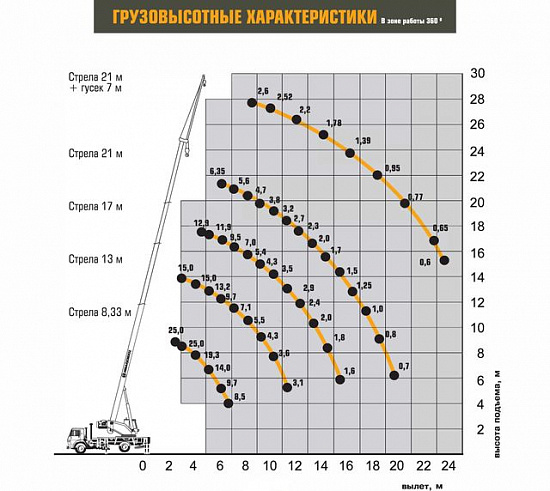

Lifting characteristics

Maximum load-lifting height, m

Working radius, m

With main boom

2,5 - 19,0
With jib

8,5 - 23,0
Speed of lifting (lowering) of the load at 10-fold stocking of the cargo rope, m / min

0,2 - 6,06
Maximum speed of lifting (lowering) the hook, m/min

48,5
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 1,02
Slewing speed, min-1

0,2

Dimensions, mm

Axle load, t

In crane operation area 360 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.
