Description

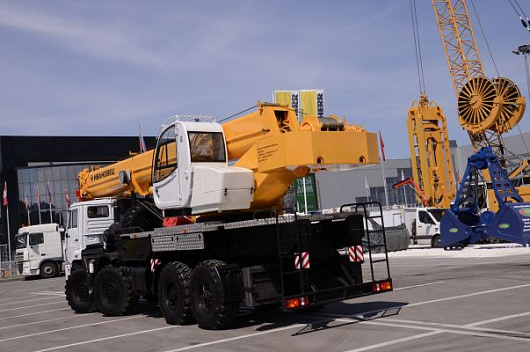

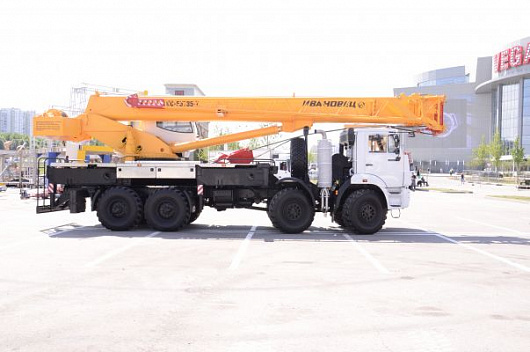

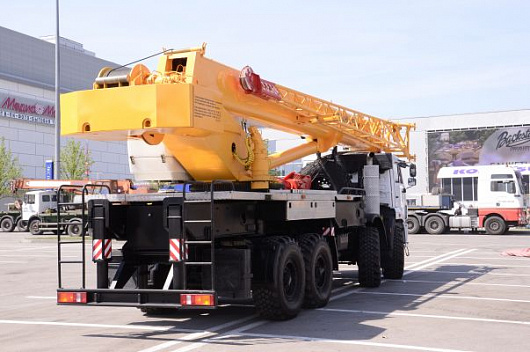

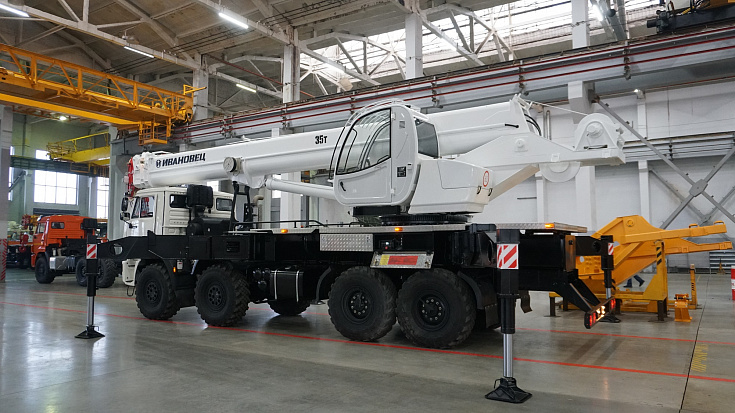

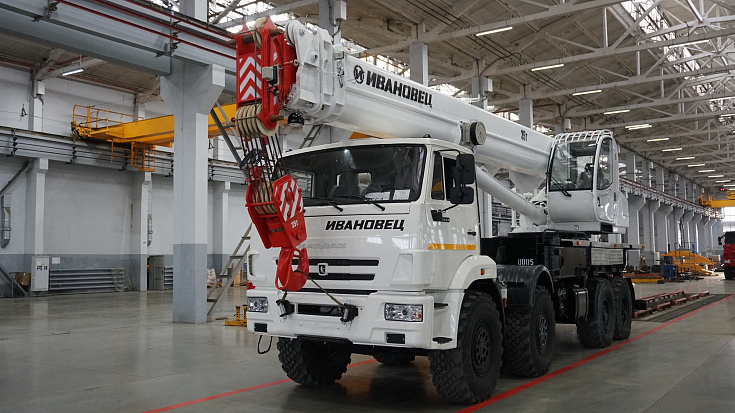

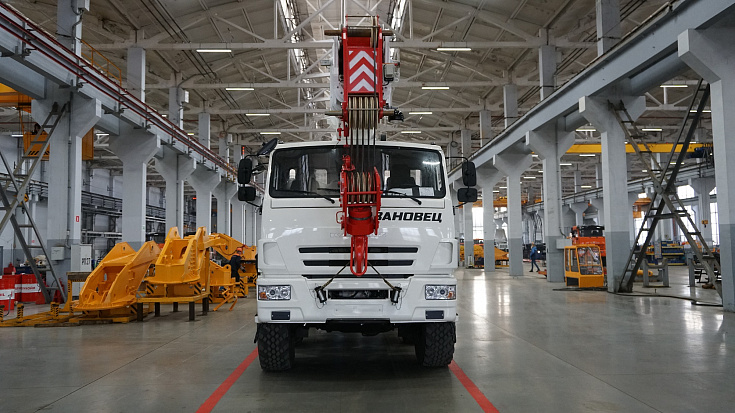

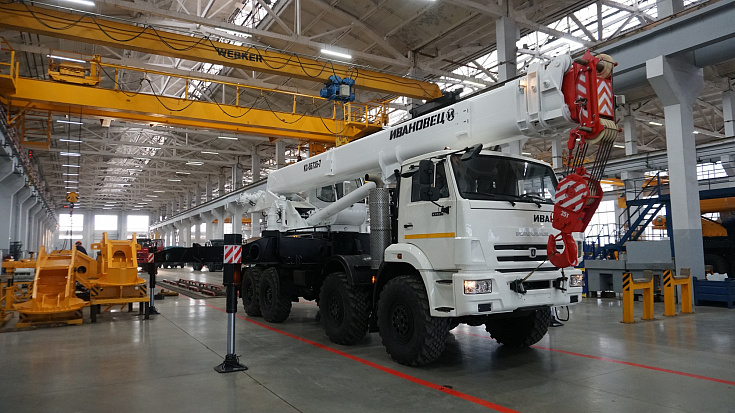

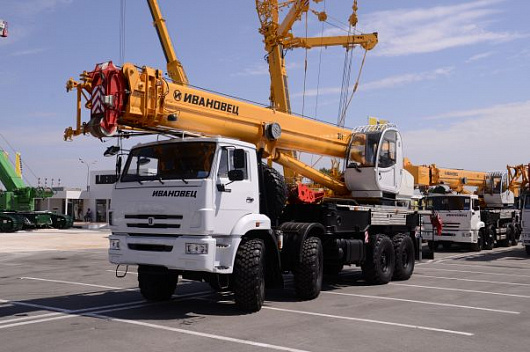

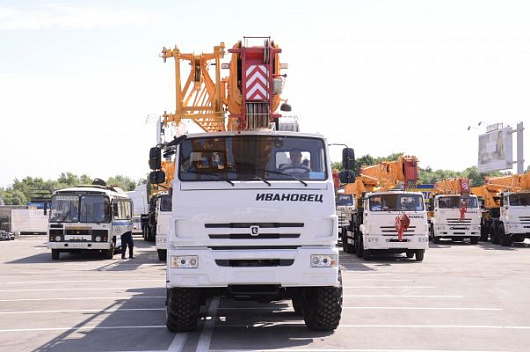

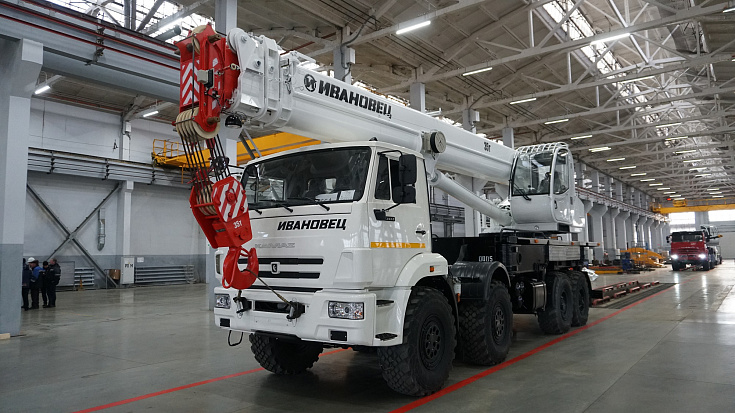

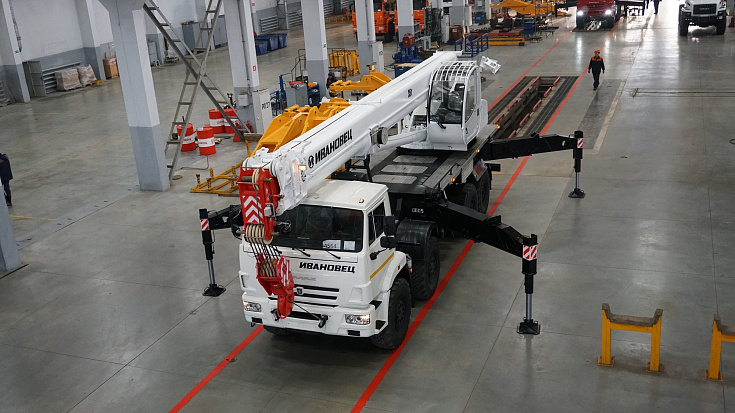

Truck-mounted crane KС-55735-7 is designed for construction-assembly works and handling operations with regular loads at the distributed objects.

Chassis: KAMAZ-63501 of emission standard Euro 2 /Euro 3 / Euro 4 / Euro 5
Maximum lifting capacity: 35 tn

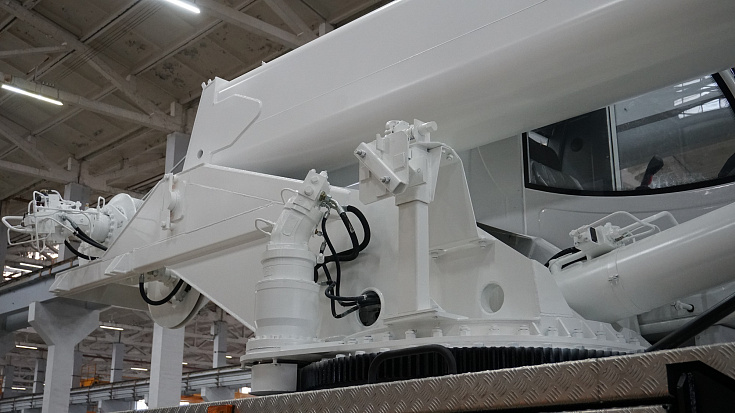

Crane mechanisms drive: hydraulic with the possibility of combining of work operations

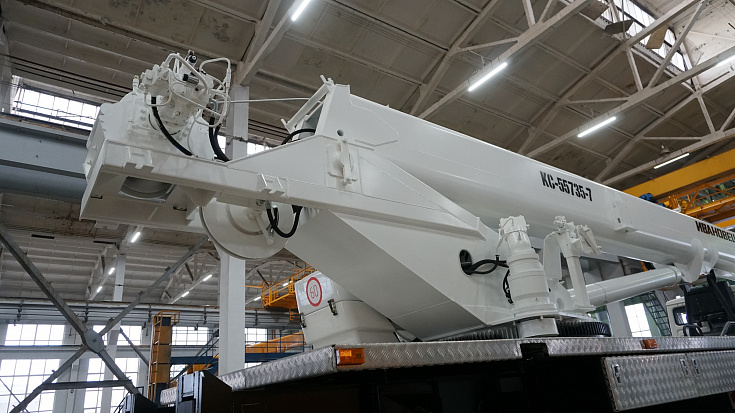

Boom: 3 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. In order to increase a length of the boom the 9.0m jib to be equipped

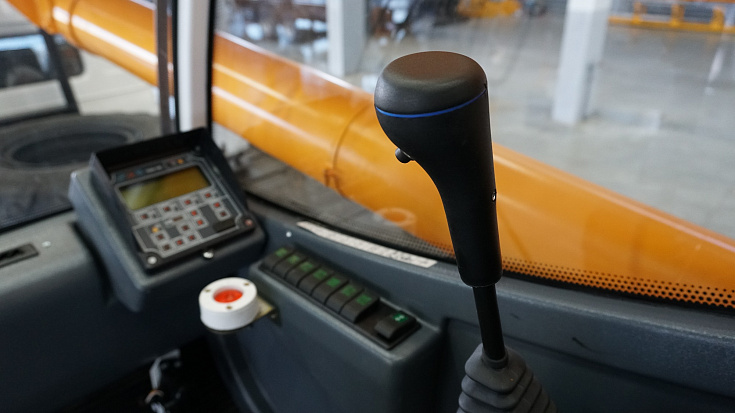

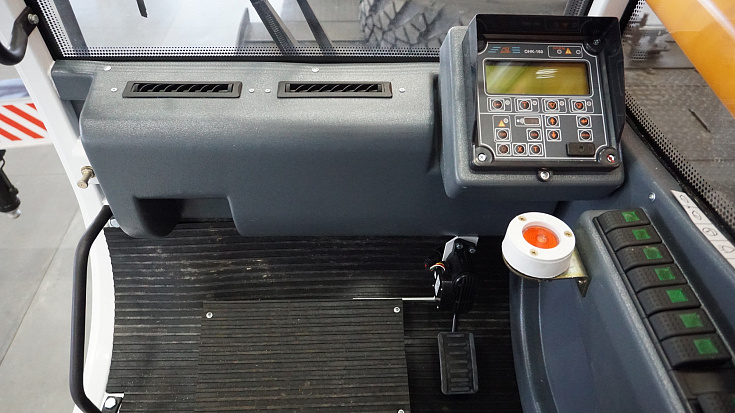

Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Chassis

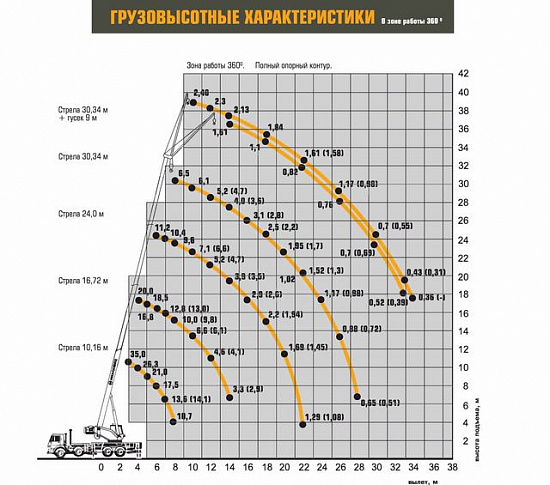

Lifting characteristics

Maximum load-lifting height, m

Working radius, m

With main boom

3,0 - 28,0
With jib

10,0 - 33,0
Speed of lifting (lowering) of the load at 10-fold stocking of the cargo rope, m / min

0,2 - 5,1
Maximum speed of lifting (lowering) the hook, m/min

38,0
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 1,0
Slewing speed, min-1

0,2
