Description

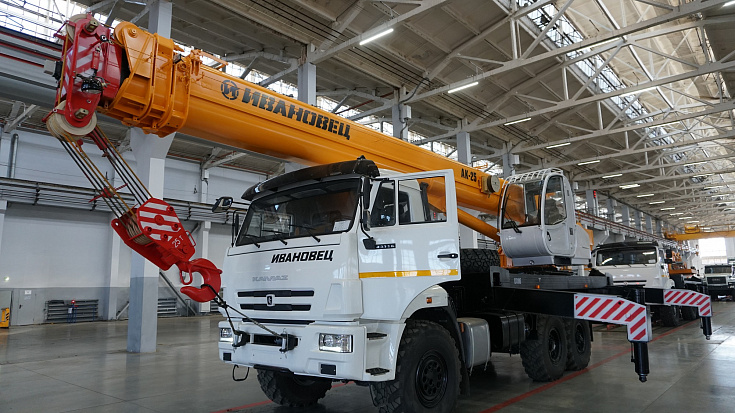

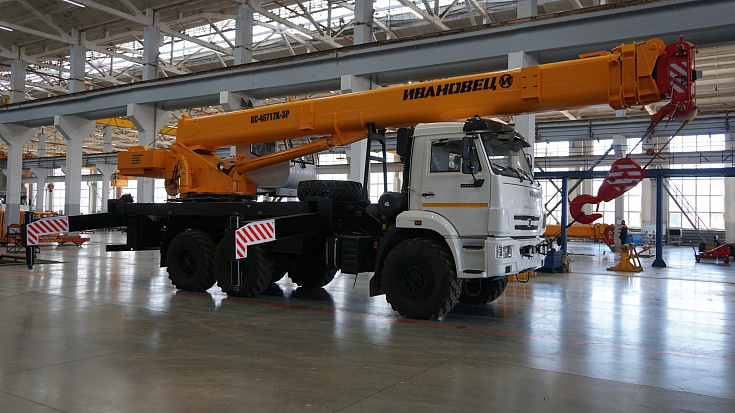

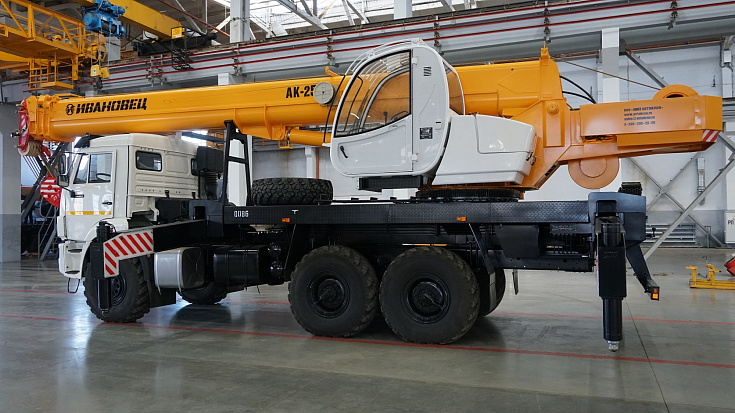

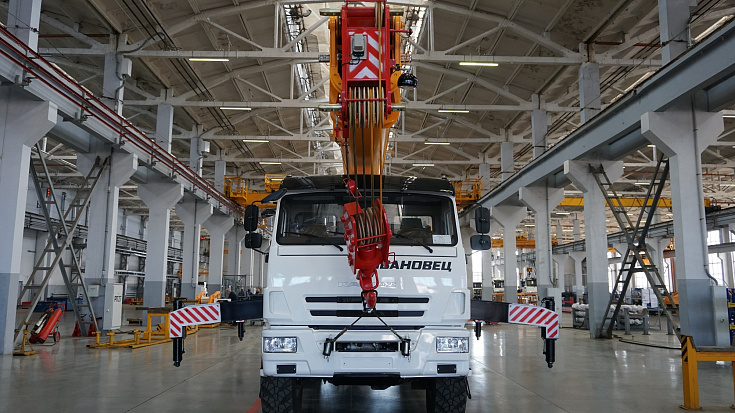

Truck-mounted crane KС-45717K-3P is designed for construction-assembly works and handling operations with regular loads at the distributed objects.

  • Chassis: KAMAZ-43118 of emission standard Euro 2 /Euro 3 / Euro 4 / Euro 5

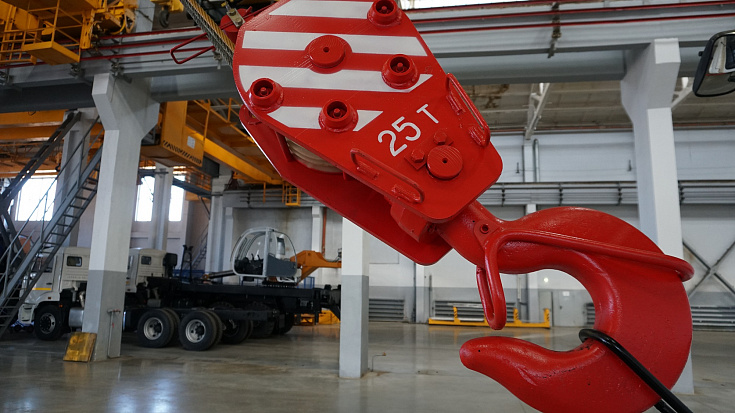

  • Maximum lifting capacity: 25 tn
  • Crane mechanisms drive: hydraulic with the possibility of combining of work operations
  • Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of S700MC steel. In order to increase a length of the boom the 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

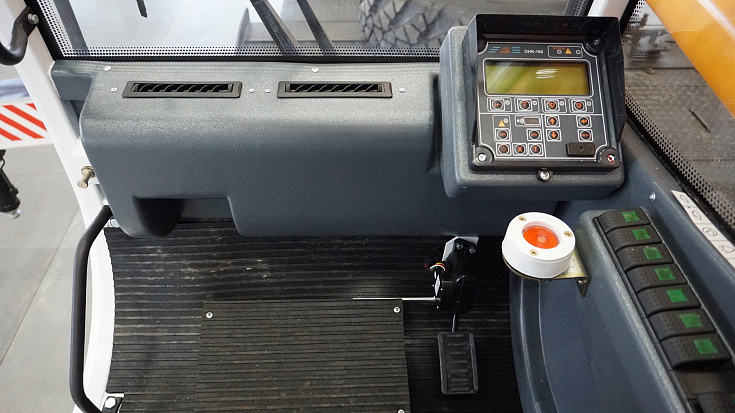

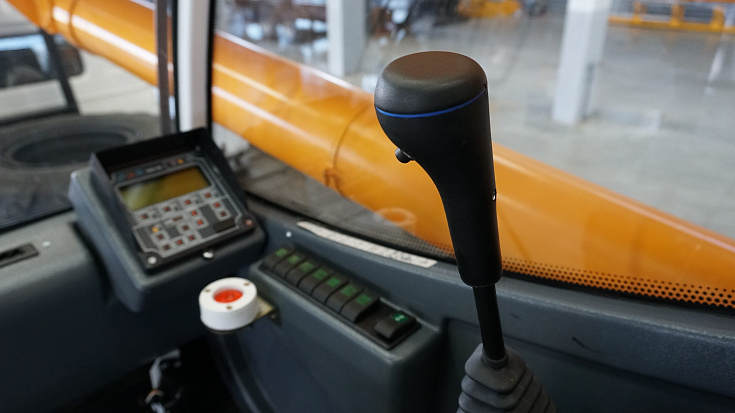

  • Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Technical characteristics

Chassis
  • Base chassis
    KAMAZ-43118
  • Axle configuration
    6x6
  • Engine
    KAMAZ-740.705-300
Lifting characteristics
  • Max. lifting capacity, tn
    25
  • Load moment, tm
    85
  • Support contour, m
    6,0 х 5,4
  • Boom length, m
    9,9 - 30,7
  • Jib length, m
    9,0
Maximum load-lifting height, m
  • With main boom
    30,6
  • With jib
    39,3
Working radius, m
  • With main boom
    1,9 - 27,0
  • With jib
    9,7 - 30,0
  • Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min
    0,2 - 7,4
  • Maximum speed of lifting (lowering) the hook, m/min
    40,0
  • The speed of landing, m/min
    60,0
  • Travelling speed, km/h
    0,3 - 1,9
  • Slewing speed, min-1
    0,2
Dimensions, mm
  • Length, mm
    11 945
  • Width, mm
    2 550
  • Height, mm
    3 980
  • Gross weight with jib, t
    22,42
Axle load, t
  • Weight on front axle
    6,42
  • Weight on rear axle
    16,00

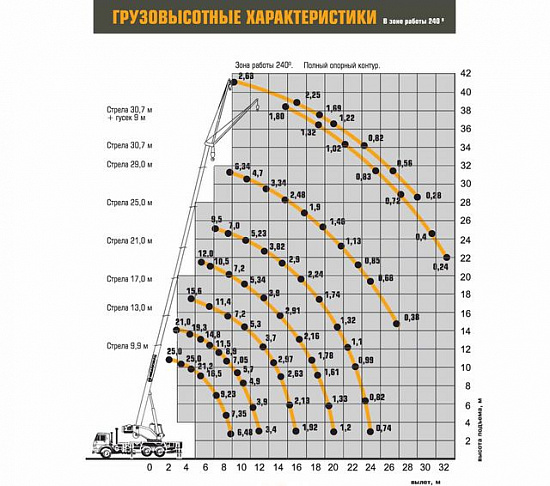

Load-lifting characteristics

In crane operation area 240 degrees
Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.
