Description

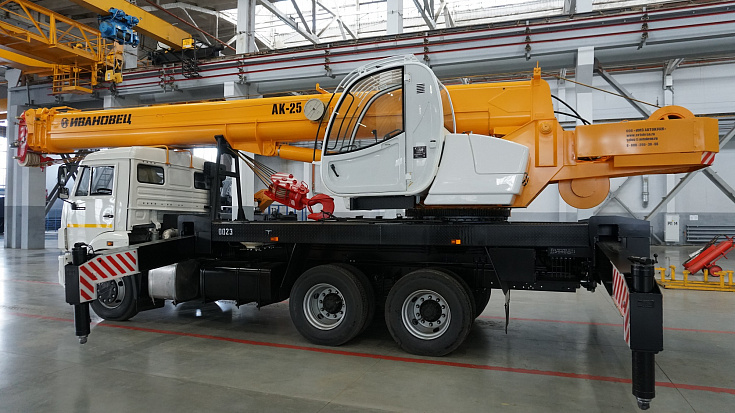

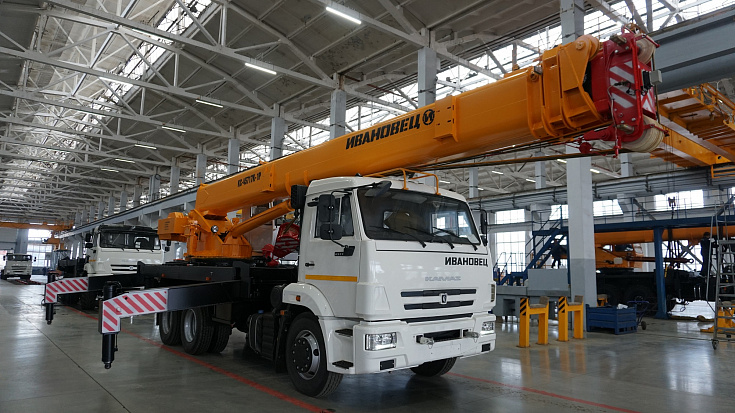

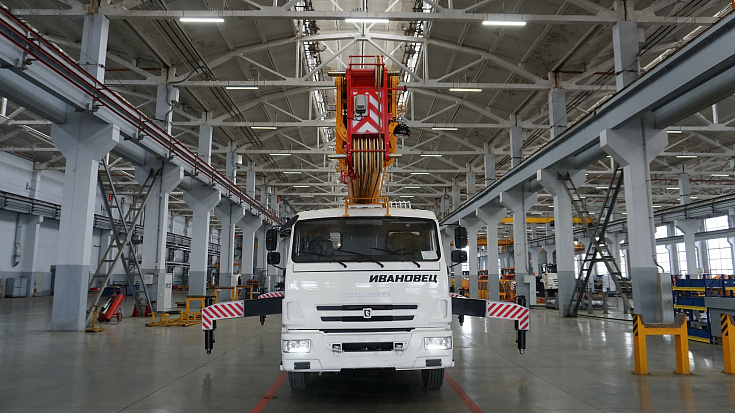

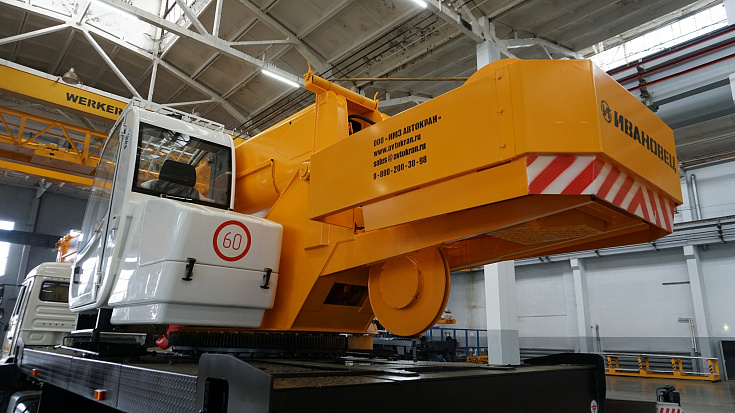

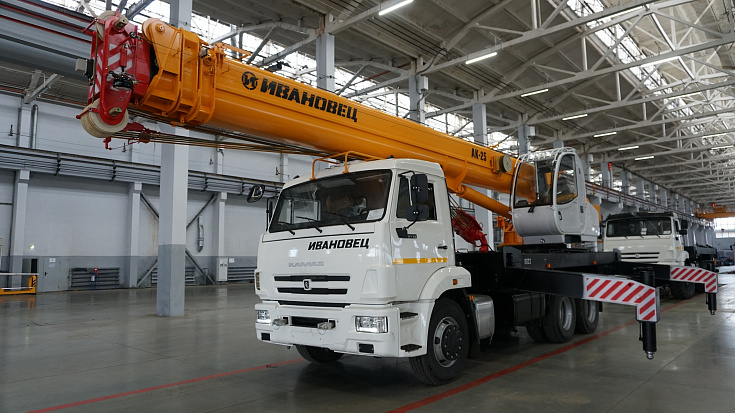

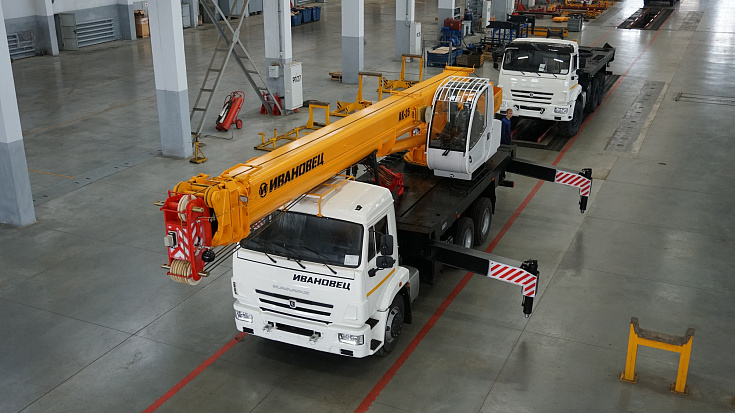

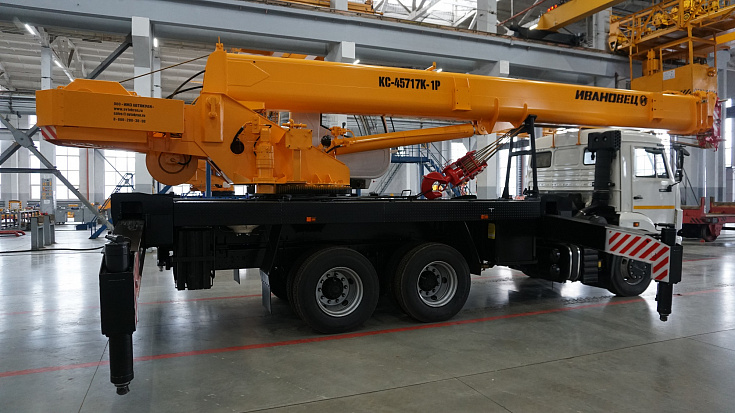

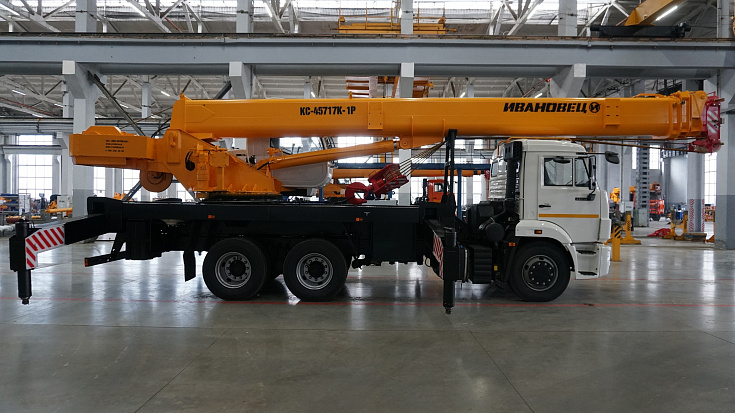

Truck-mounted crane KС-45717K-1P is designed for construction-assembly works and handling operations with regular loads at the distributed objects.

Chassis: KAMAZ-6312 of emission standard Euro 2 /Euro 3 / Euro 4 / Euro 5
Maximum lifting capacity: 25 tn
Crane mechanisms drive: hydraulic with the possibility of combining of work operations
Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of S700MC steel. In order to increase a length of the boom the 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

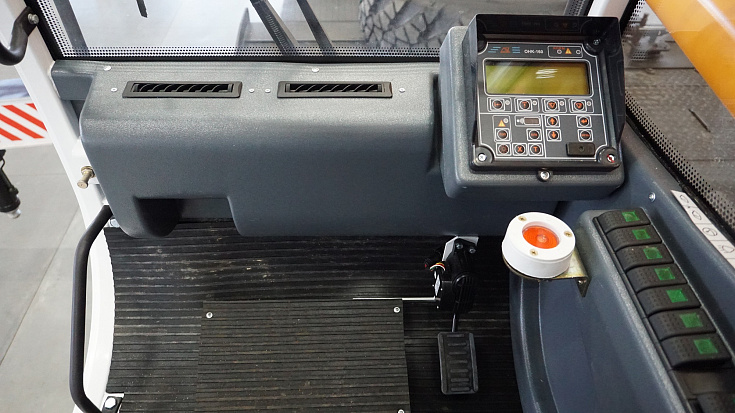

Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Chassis

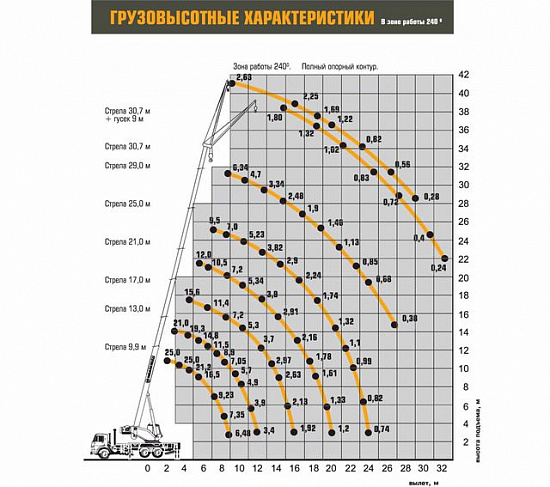

Lifting characteristics

Maximum load-lifting height, m

Working radius, m

With main boom

1,9 - 26,0
With jib

9,0 - 29,5
Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min

0,2 - 7,4
Maximum speed of lifting (lowering) the hook, m/min

40,0
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 1,9
Slewing speed, min-1

0,2

Dimensions, mm

Axle load, t

In crane operation area 240 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

optional parts
