Description

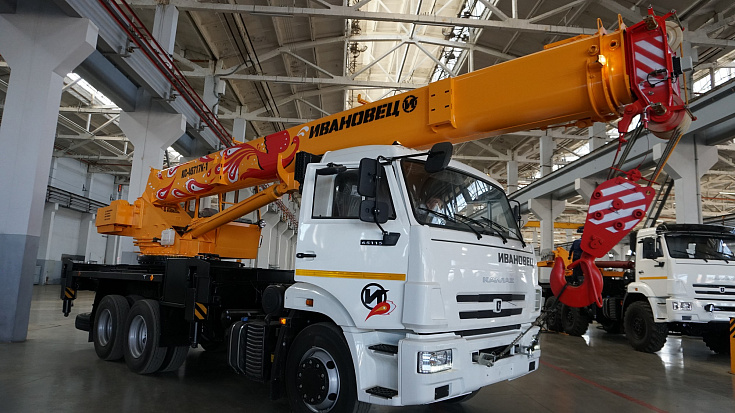

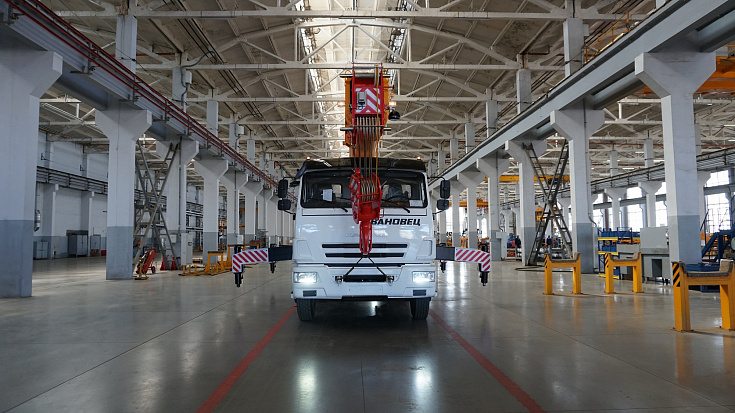

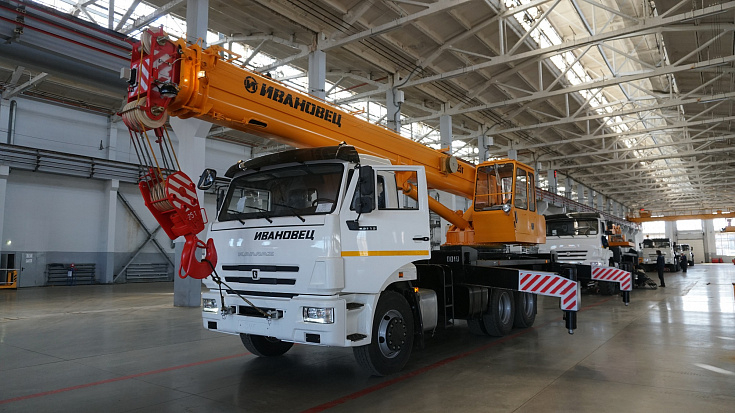

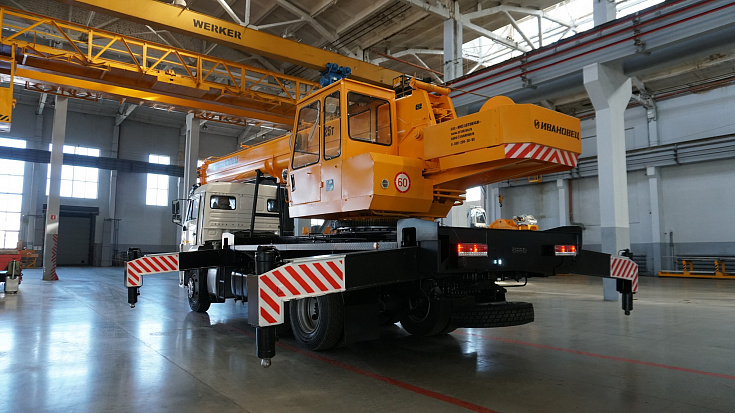

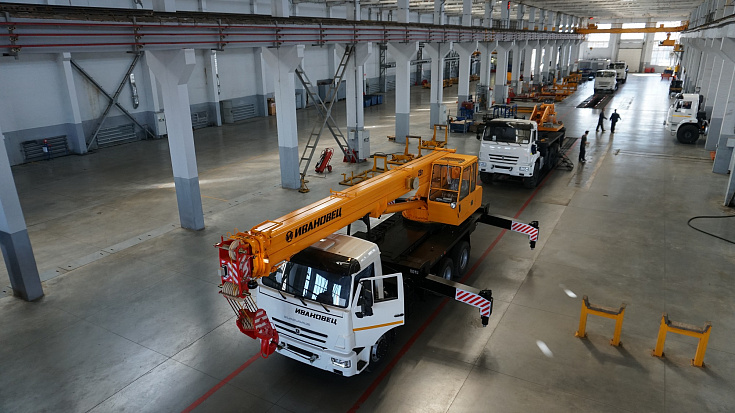

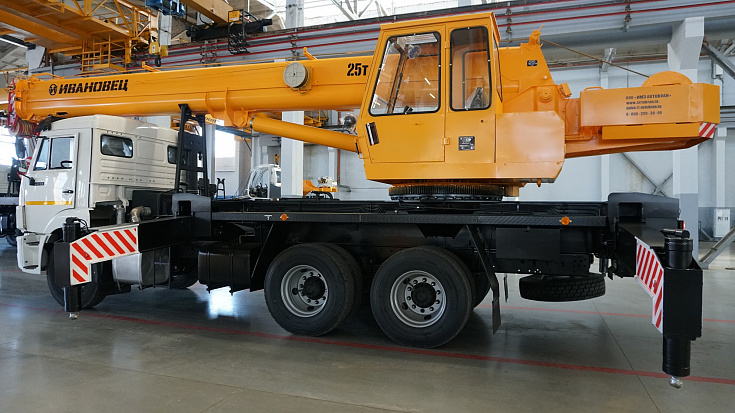

Truck-mounted crane KC-45717K-1 is designed for construction-assembly works and handling operations with regular loads, as well as toxic and explosive at the distributed objects.

  • Chassis: KAMAZ-65115 of emission standard Euro 2 / Euro 3 / Euro 4 / Euro 5
  • Maximum lifting capacity of regular loads: 25 tn
  • Maximum lifting capacity of toxic and explosive: 20 tn

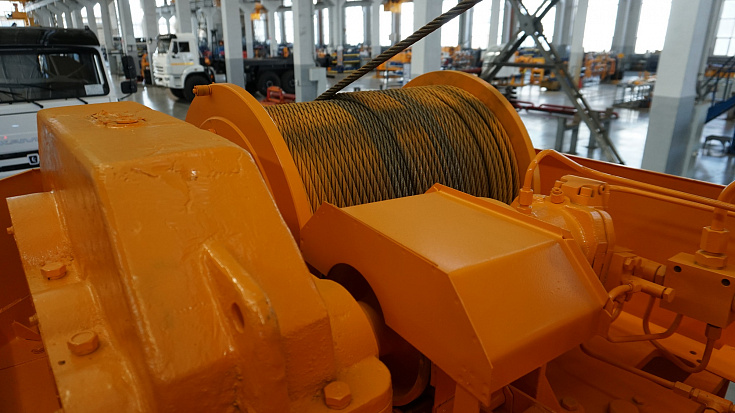

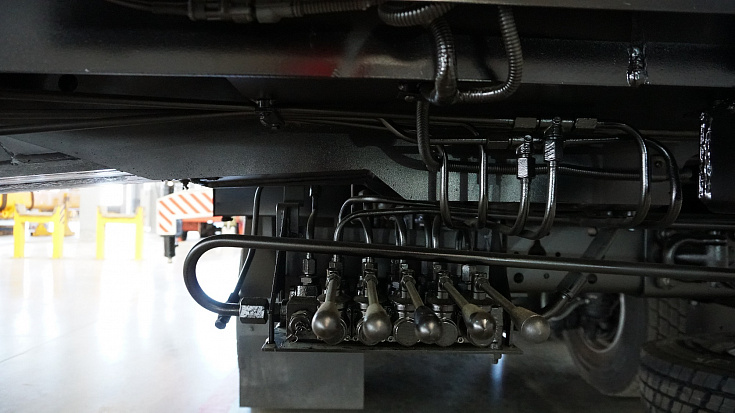

  • Crane mechanisms drive: hydraulic with the possibility of combining of work operations
  • Boom: 3 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of 10XCND or S700MC steel. In order to increase a length of the boom a 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

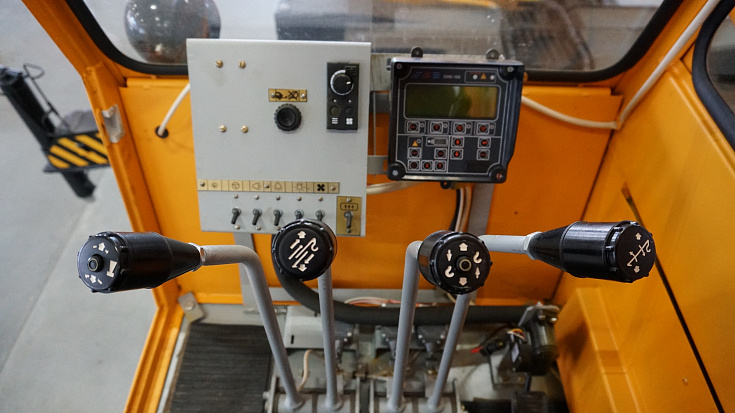

  • Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Technical characteristics

Chassis
  • Base chassis
    KAMAZ-65115
  • Axle configuration
    6x4
  • Engine
    KAMAZ-740.705-300
Lifting characteristics
  • Max. lifting capacity, tn
    25
  • Load moment, tm
    80
  • Support contour, m
    5,6 х 4,95
  • Boom length, m
    9,0 - 21,0
  • Jib length, m
    9,0
Maximum load-lifting height, m
  • With main boom
    21,4
  • With jib
    29,9
Working radius, m
  • With main boom
    2,0 - 19,0
  • With jib
    9,0 - 28,0
  • Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min
    0,2 - 6,1
  • Maximum speed of lifting (lowering) the hook, m/min
    35,0
  • The speed of landing, m/min
    60,0
  • Travelling speed, km/h
    0,3 - 1,7
  • Slewing speed, min-1
    0,2
Dimensions, mm
  • Length, mm
    11 000
  • Width, mm
    2 550
  • Height, mm
    3 900
  • Gross weight with jib, t
    20,22
Axle load, t
  • Weight on front axle
    4,82
  • Weight on rear axle
    14,40

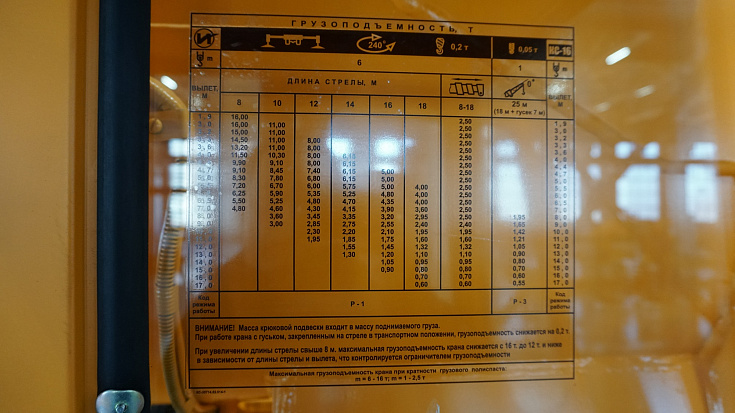

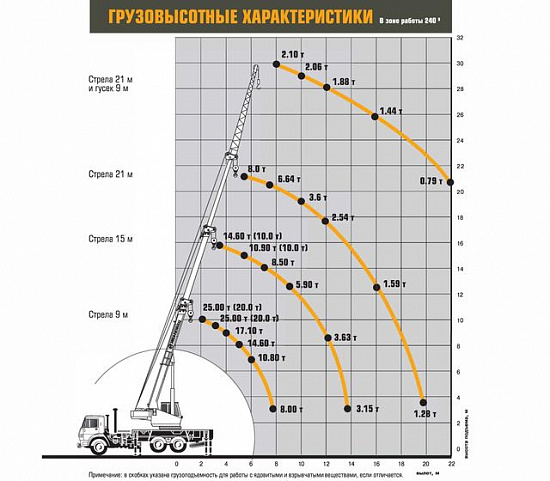

Load-lifting characteristics

In crane operation area 240 degrees
Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

Options for autocranes

optional parts
  • Jib – 9 m.
  • 250 kg capacity cradle или Cargo platform with lifting capacity 250 kg.
  • Electro-proportional crane operation control system
  • Sleeper setting
