IVANOVETS КС-45717-2Р Air

1 / 11
2 / 11
3 / 11
4 / 11
5 / 11
6 / 11
7 / 11
8 / 11
9 / 11
10 / 11
11 / 11

Description

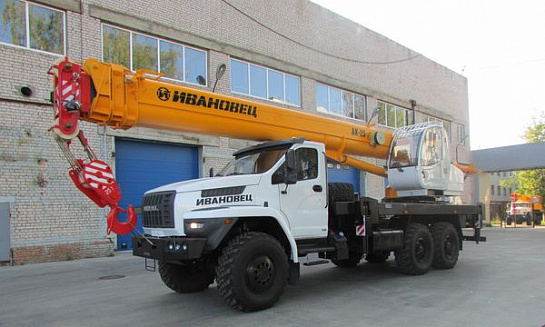

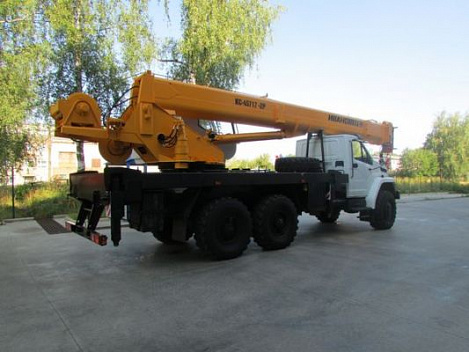

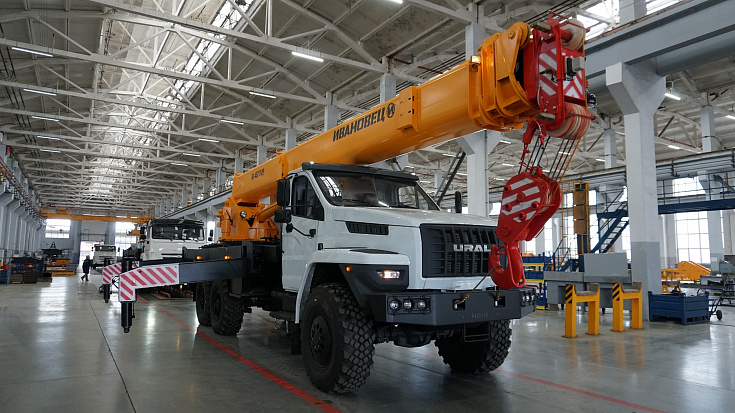

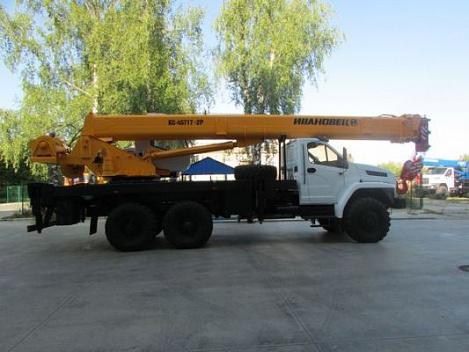

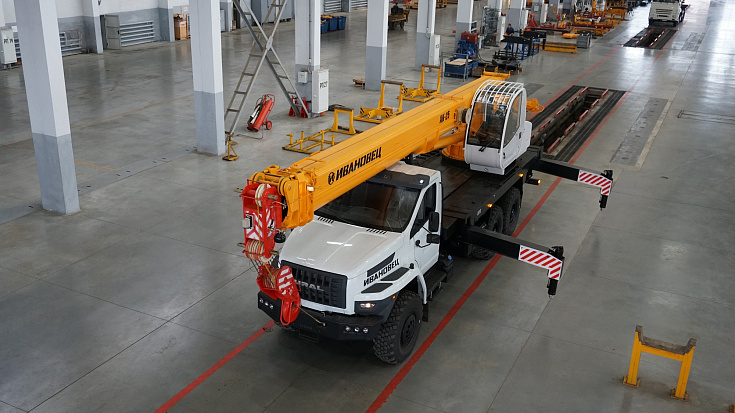

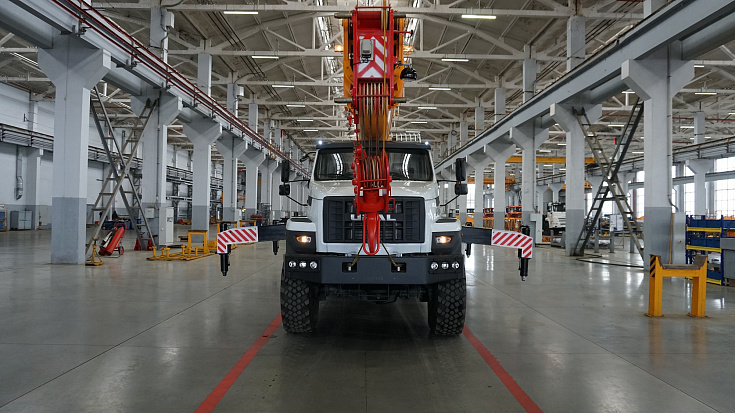

Truck-mounted crane KС-45717-2P Air is designed for construction-assembly works and handling operations with regular loads

  • Chassis: URAL-4320 Next  of emission standard Euro 4 / Euro 5
  • Maximum lifting capacity: 25 tn
  • Crane mechanisms drive: hydraulic with the possibility of combining of work operations
  • Boom: 4 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of S700MC steel. In order to increase a length of the boom the 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

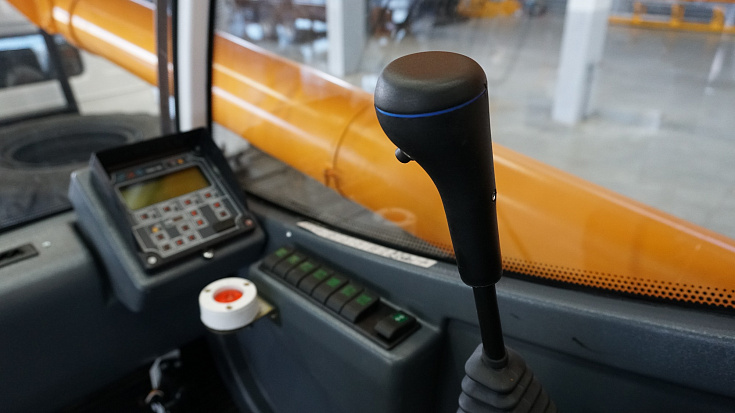

  • Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Technical characteristics

Chassis
  • Base chassis
    URAL-5557
  • Axle configuration
    6x6
  • Engine
    YMZ-53623-10
Lifting characteristics
  • Max. lifting capacity, tn
    16
  • Load moment, tm
    48
  • Support contour, m
    5,2 х 4,0
  • Boom length, m
    8,0 - 18,0
  • Jib length, m
    7,0
Maximum load-lifting height, m
  • With main boom
    18,4
  • With jib
    25,0
Working radius, m
  • With main boom
    1,9 - 17,0
  • With jib
    8,0 - 17,0
  • Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min
    0,2 - 7,5
  • Maximum speed of lifting (lowering) the hook, m/min
    35,0
  • The speed of landing, m/min
    60,0
  • Travelling speed, km/h
    0,3 - 2,4
  • Slewing speed, min-1
    0,2
Dimensions, mm
  • Length, mm
    10 000
  • Width, mm
    2 500
  • Height, mm
    3 520
  • Gross weight with jib, t
    18,75
Axle load, t
  • Weight on front axle
    4,70
  • Weight on rear axle
    14,05

Load-lifting characteristics

In crane operation area 240 degrees
Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

Options for autocranes

optional parts
  • 250 kg capacity cradle или Cargo platform with lifting capacity 250 kg.
  • Electro-proportional crane operation control system
  • operator's cabin dumping unit
