IVANOVETS КС-45717-2

1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8

Description

Truck-mounted crane KC-45717-2 is designed for construction-assembly works and handling operations with regular loads, as well as toxic and explosive at the distributed objects.

  • Chassis: URAL-4320 Next of emission standard Euro 4 / Euro 5
  • Maximum lifting capacity of regular loads: 25 tn
  • Maximum lifting capacity of toxic and explosive: 20 tn
  • Crane mechanisms drive: hydraulic with the possibility of combining of work operations
  • Boom: 3 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of 10XCND or S700MC steel. In order to increase a length of the boom a 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

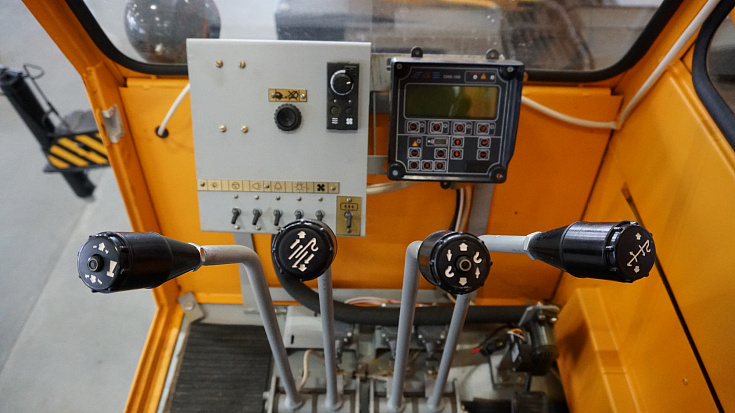

  • Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Technical characteristics

Chassis
  • Base chassis
    URAL-4320
  • Axle configuration
    6x6
  • Engine
    YMZ-53623-10
Lifting characteristics
  • Max. lifting capacity, tn
    25
  • Load moment, tm
    80
  • Support contour, m
    5,6 х 4,95
  • Boom length, m
    9,0 - 21,0
  • Jib length, m
    9,0
Maximum load-lifting height, m
  • With main boom
    21,4
  • With jib
    29,9
Working radius, m
  • With main boom
    2,0 - 19,0
  • With jib
    9,0 - 28,0
  • Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min
    0,2 - 6,8
  • Maximum speed of lifting (lowering) the hook, m/min
    35,0
  • The speed of landing, m/min
    60,0
  • Travelling speed, km/h
    0,3 - 1,9
  • Slewing speed, min-1
    0,2
Dimensions, mm
  • Length, mm
    10 825
  • Width, mm
    2 500
  • Height, mm
    3 740
  • Gross weight with jib, t
    21,05
Axle load, t
  • Weight on front axle
    6,25
  • Weight on rear axle
    14,80

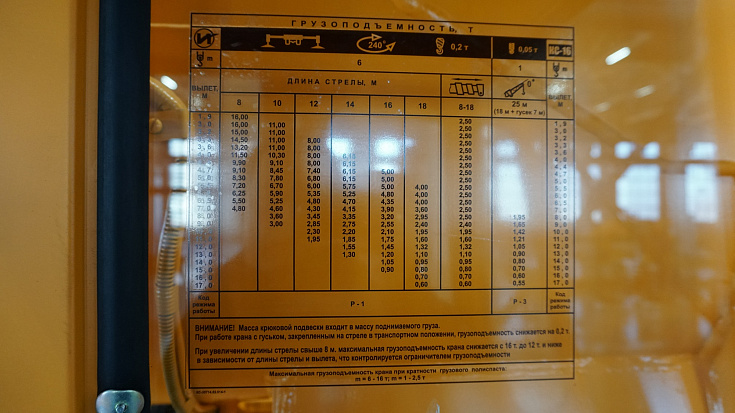

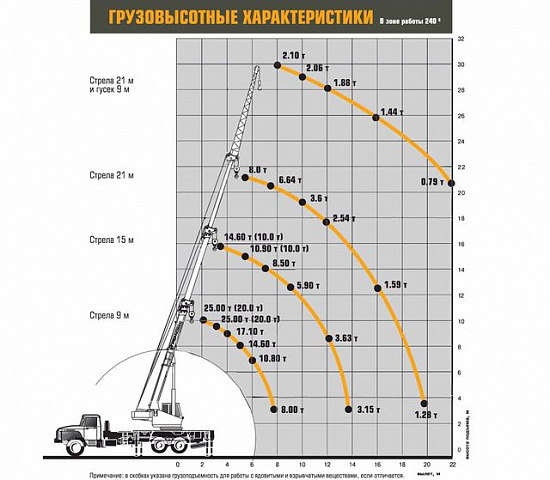

Load-lifting characteristics

In crane operation area 240 degrees
Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

Options for autocranes

optional parts
  • Jib – 9 m.
  • 250 kg capacity cradle или Cargo platform with lifting capacity 250 kg.
