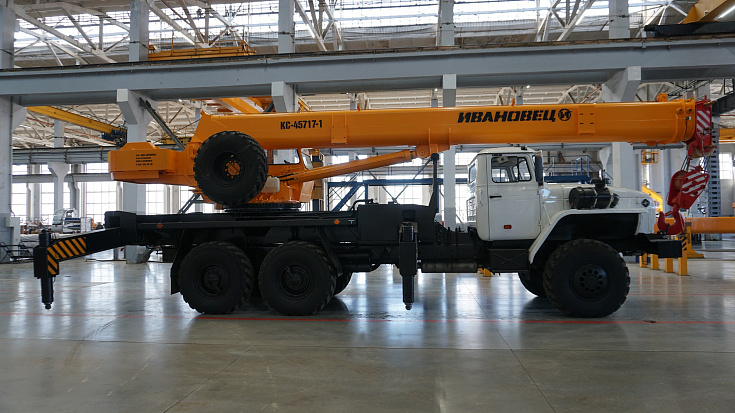

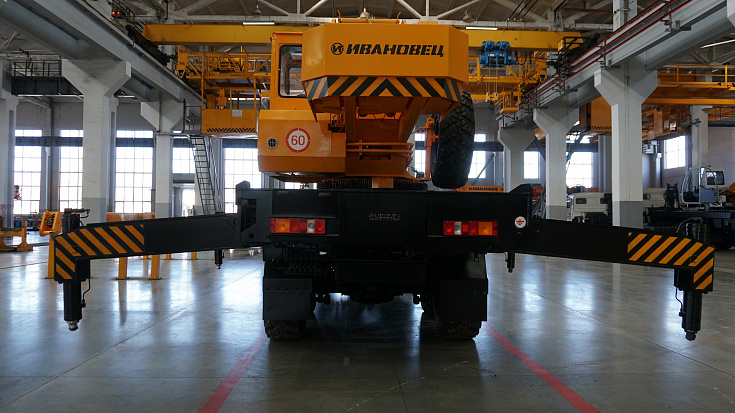

IVANOVETS КС-45717-1

1 / 11

2 / 11

3 / 11

4 / 11

5 / 11

6 / 11

7 / 11

8 / 11

9 / 11

10 / 11

11 / 11

Description

Truck-mounted crane KC-45717-1 is designed for construction-assembly works and handling operations with regular loads, as well as toxic and explosive at the distributed objects.

Chassis: URAL-4320 of emission standard Euro 0 / Euro 2 / Euro 4 / Euro 5
Maximum lifting capacity of regular loads: 25 tn
Maximum lifting capacity of toxic and explosive: 20 tn
Crane mechanisms drive: hydraulic with the possibility of combining of work operations
Boom: 3 sections telescopic. Boom telescoping is performed with hydraulic cylinder and block-and-tackle system. Made of 10XCND or S700MC steel. In order to increase a length of the boom a 9.0m jib to be equipped parallel to the boom or at an angle of 30 degrees

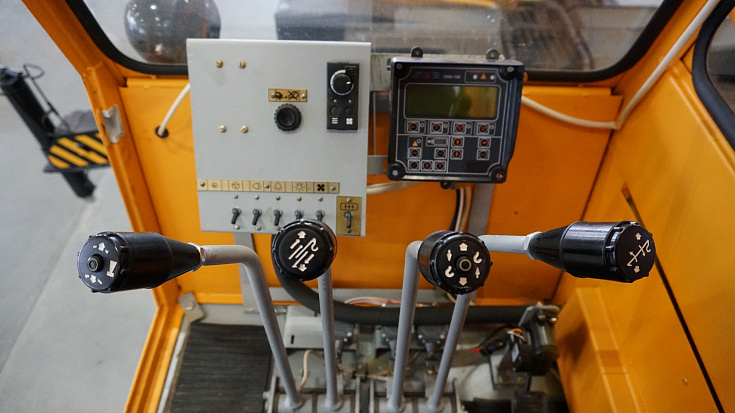

Lifting limitation and fixing of the crane operation parameters: using a microprocessor lifting limiter with digital information display and built-in data recorder.

Technical characteristics

Chassis

Base chassis

URAL-4320
Axle configuration

6x6
Engine

YMZ-53623-10

Lifting characteristics

Max. lifting capacity, tn

25
Load moment, tm

80
Support contour, m

5,6 х 4,95
Boom length, m

9,0 - 21,0
Jib length, m

9,0

Maximum load-lifting height, m

With main boom

21,4
With jib

29,9

Working radius, m

With main boom

2,0 - 19,0
With jib

9,0 - 28,0
Speed of lifting (lowering) of the load at 8-fold stocking of the cargo rope, m / min

0,2 - 6,8
Maximum speed of lifting (lowering) the hook, m/min

35,0
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 1,9
Slewing speed, min-1

0,2

Dimensions, mm

Length, mm

10 825
Width, mm

2 550
Height, mm

3 740
Gross weight with jib, t

20,95

Axle load, t

Weight on front axle

6,15
Weight on rear axle

14,80

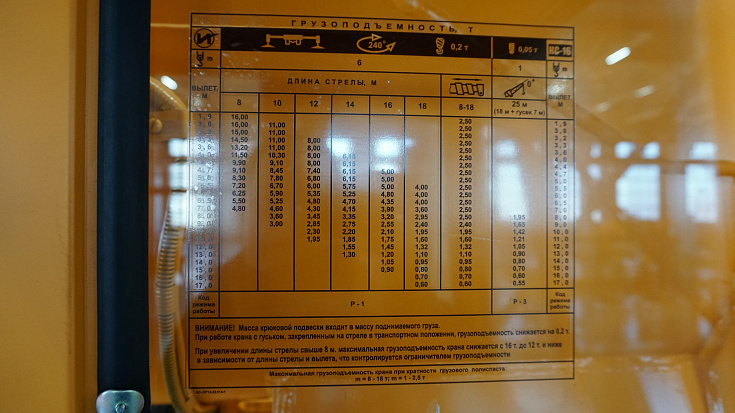

Load-lifting characteristics

In crane operation area 240 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

Options for autocranes

optional parts

-Jib – 9 m.
-250 kg capacity cradle или Cargo platform with lifting capacity 250 kg.
