Description

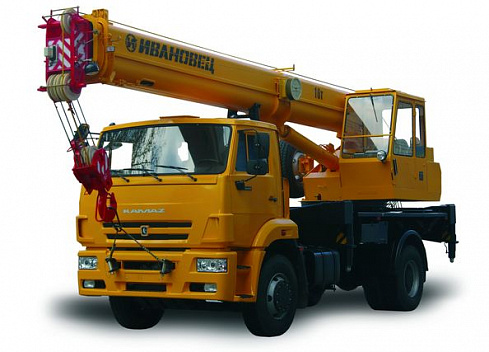

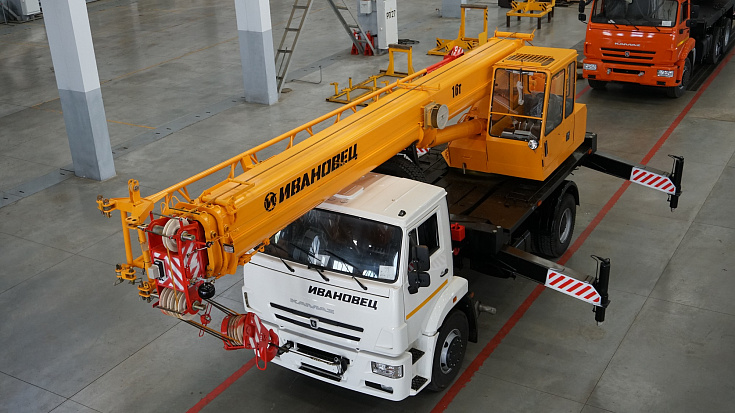

Truck-mounted crane KС-35714K-3 is designed for construction-assembly works and handling operations with regular loads.

Chassis KAMAZ-43118 of emission standard Euro 2 / Euro 3 / Euro 4 / Euro 5
Maximum lifting capacity 16 tn
Crane mechanisms drive hydraulic with the possibility of combining of work operations
Boom 3 sections telescopic Boom telescoping is performed with hydraulic cylinder and block and tackle system In order to increase length of the boom a 7,0 m jib to be equipped

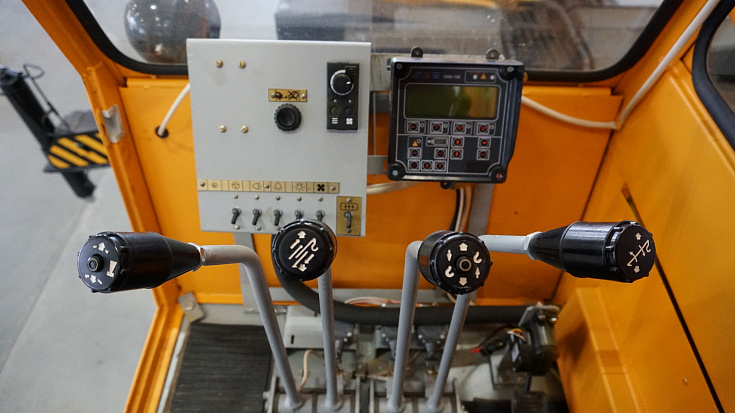

Lifting limitation and fixing of the crane operation parameters using a microprocessor lifting limiter with digital information display and built in data recorder

Technical characteristics

Chassis

Base chassis

KAMAZ-53605
Axle configuration

4x2
Engine

Cummins ISB6.7E5 300

Lifting characteristics

Max. lifting capacity, tn

16
Load moment, tm

48
Support contour, m

5,2 х 4,0
Boom length, m

8,0 - 18,0
Jib length, m

7,0

Maximum load-lifting height, m

With main boom

18,4
With jib

25,0

Working radius, m

With main boom

1,9 - 17,0
With jib

8,0 - 17,0
Precision load-lowering speed, m/min

0,2 - 7,5
Maximum speed of lifting (lowering) the hook, m/min

35,0
The speed of landing, m/min

50,0
Travelling speed, km/h

0,3 - 2,4
Slewing speed, min-1

0,2

Dimensions, mm

Length, mm

10 000
Width, mm

2 500
Height, mm

3 900
Gross weight with jib, t

17,32

Axle load, t

Weight on front axle

7,32
Weight on rear axle

10,00

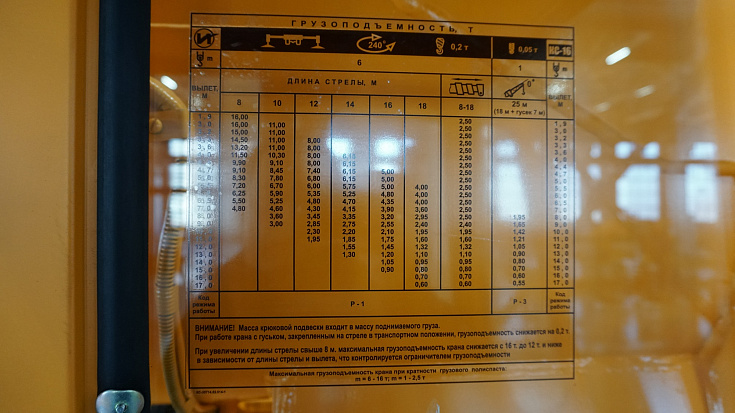

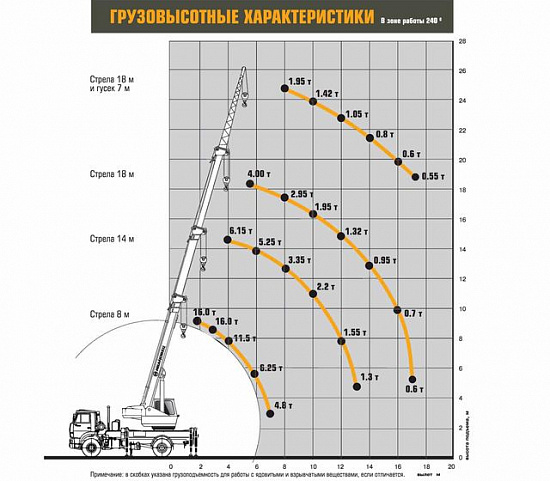

Load-lifting characteristics

In crane operation area 240 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

Options for autocranes

optional parts

-Jib – 7 m.
-Sleeper setting
