Description

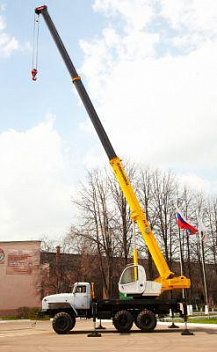

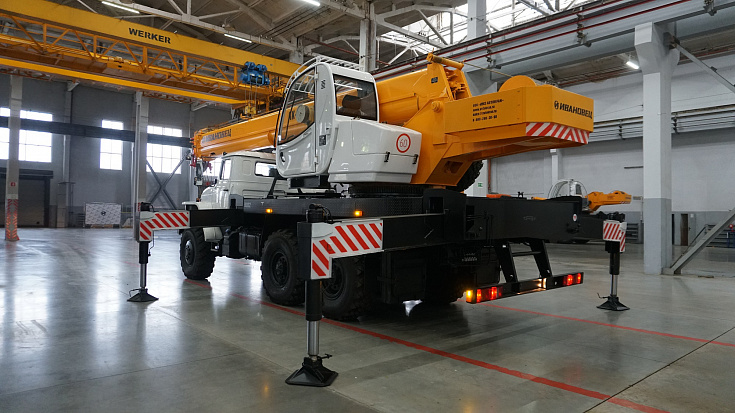

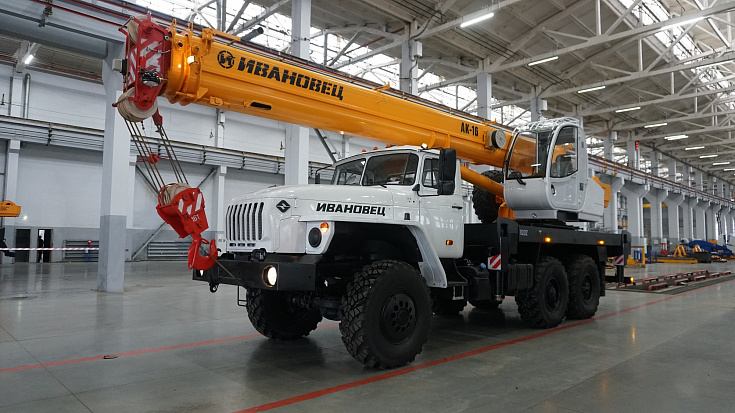

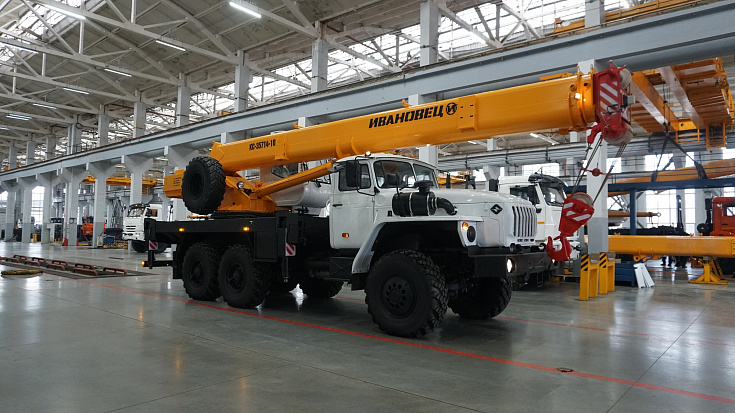

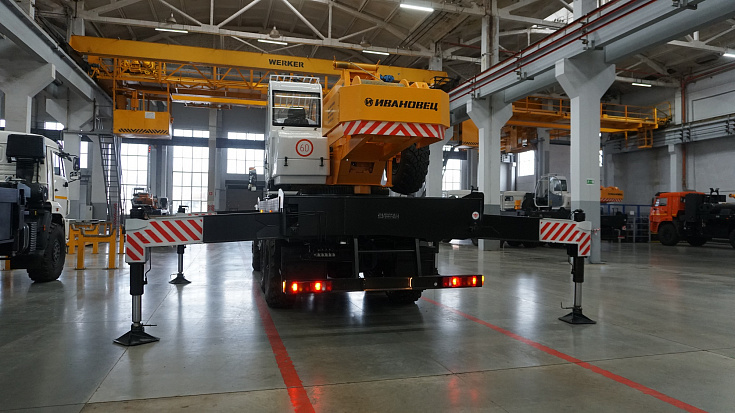

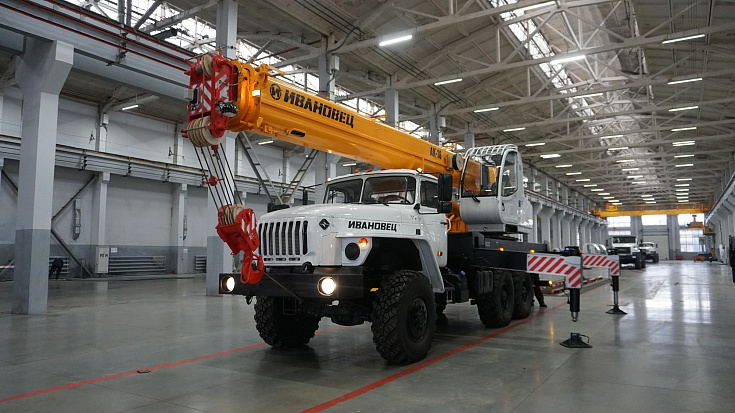

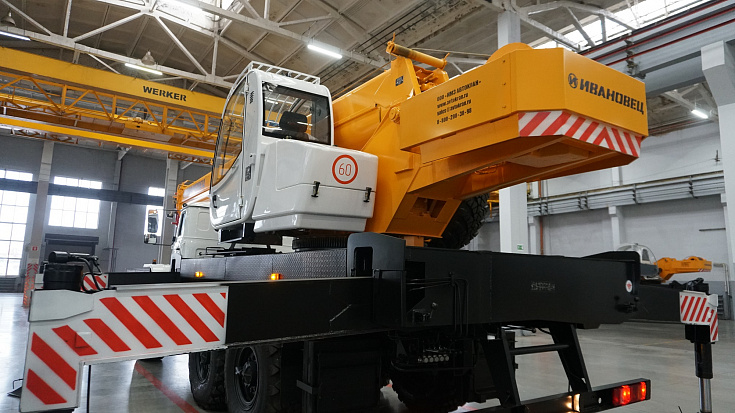

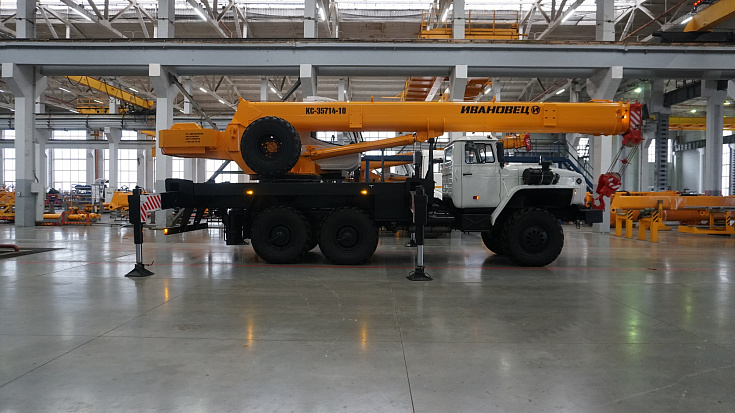

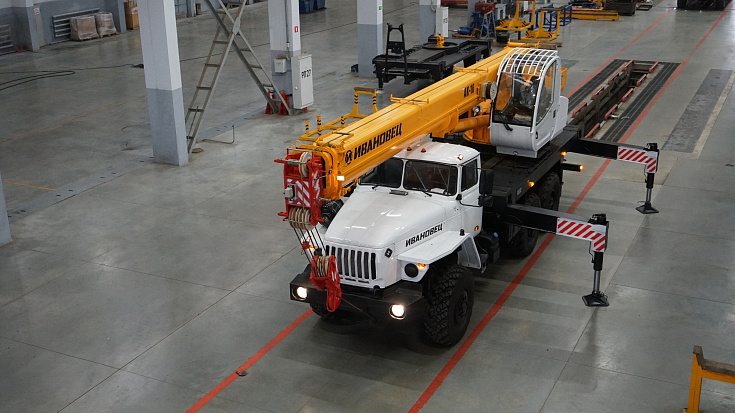

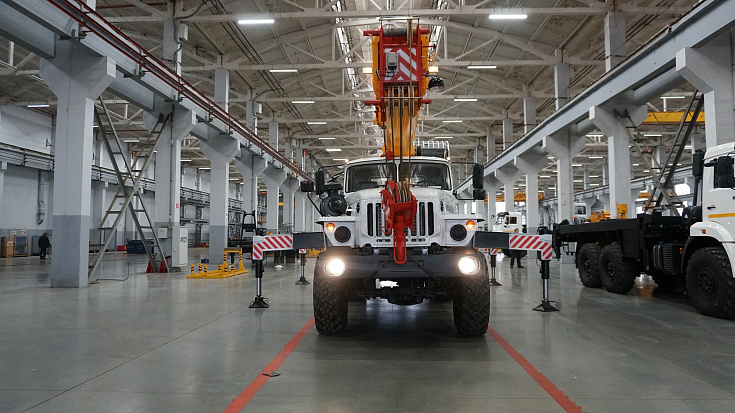

Truck-mounted crane KС-35714-10 is designed for construction-assembly works and handling operations with regular loads.

Chassis URAL 5557 of emission standard Euro 0 / Euro 2 / Euro 4 / Euro 5 (LHD) and Euro 0 (RHD)
Maximum lifting capacity 16 tn

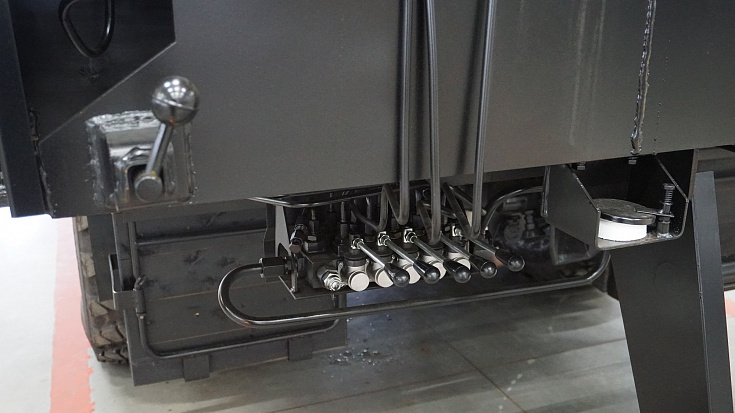

Crane mechanisms drive hydraulic with the possibility of combining of work operations

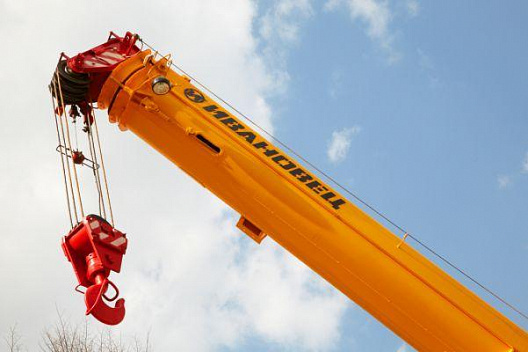

Boom 3 sections telescopic Boom telescoping is performed with hydraulic cylinder and block and tackle system In order to increase length of the boom a 9,0 m jib to be equipped

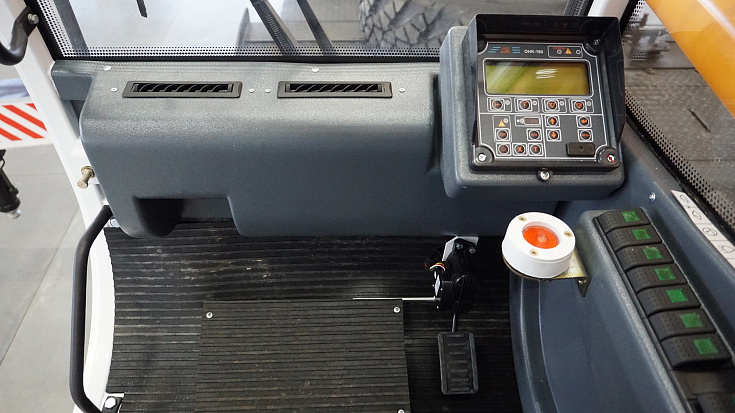

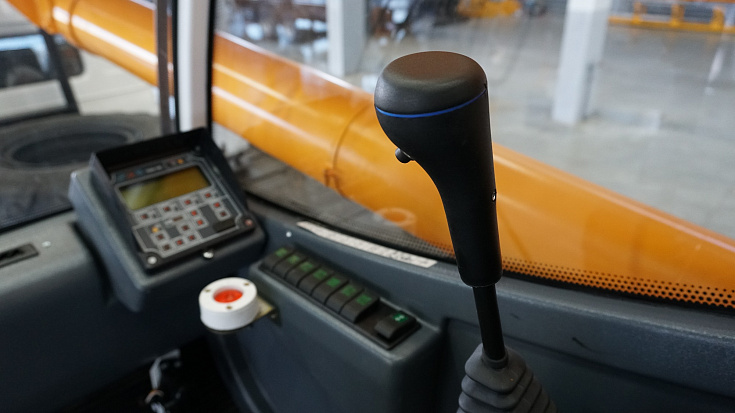

Lifting limitation and fixing of the crane operation parameters using a microprocessor lifting limiter with digital information display and built in data recorder

Technical characteristics

Chassis

Base chassis

URAL-5557
Axle configuration

6x6
Engine

YMZ-53623-10

Lifting characteristics

Max. lifting capacity, tn

16
Load moment, tm

73
Support contour, m

5,6 х 4,9
Boom length, m

8,9 - 23,0
Jib length, m

9,0

Maximum load-lifting height, m

With main boom

22,7
With jib

32,2

Working radius, m

With main boom

1,9 - 21,0
With jib

9,5 - 30,0
Precision load-lowering speed, m/min

0,2 - 7,5
Maximum speed of lifting (lowering) the hook, m/min

35,0
The speed of landing, m/min

60,0
Travelling speed, km/h

0,3 - 2,4
Slewing speed, min-1

0,2

Dimensions, mm

Length, mm

10 880
Width, mm

2 500
Height, mm

3 810
Gross weight with jib, t

20,15

Axle load, t

Weight on front axle

5,15
Weight on rear axle

15,00

Load-lifting characteristics

In crane operation area 240 degrees

Note: Load capacity in brackets for handling toxic agents and explosive materials is indicated, if different.

Options for autocranes

optional parts

-Jib – 9 m.
-250 kg capacity cradle или Cargo platform with lifting capacity 250 kg.
